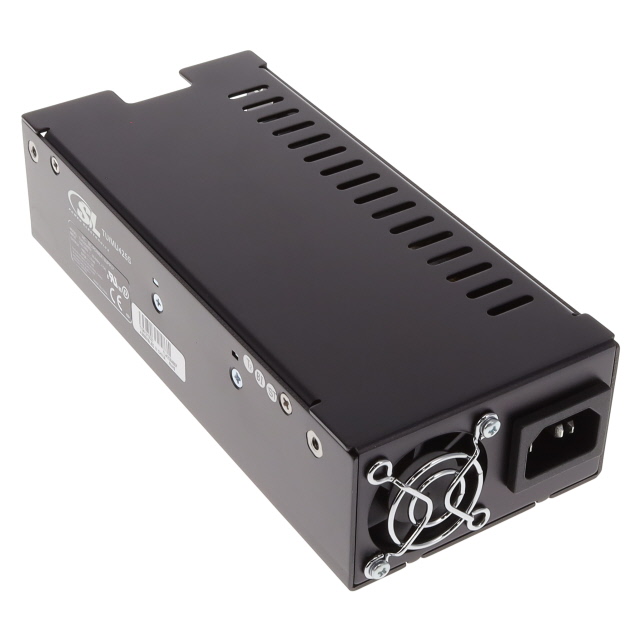

TU425S48EF

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 48V 403W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 48V 403W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TU425S48EF	TU425S48 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE	cURus, DEMKO, CE
Current - Output 1	8.4 A	3.8 - 8.4 A
Efficiency	90 %	90 %
Features	PFC, Standby Output, Universal Input, Remote Sense, Adjustable Output	Remote Sense, DC Input Capable, Standby Output, Universal Input, Load Sharing, PFC, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	403 W	182 - 425 W
Power (Watts)	-	312 W
Size / Dimension [x]	157.5 mm	157.4 - 157.5 mm
Size / Dimension [x]	6.2 in	6.2 in
Size / Dimension [y]	3.3 in	3.3 in
Size / Dimension [y]	83.8 mm	83.8 mm
Size / Dimension [z]	1.62 in	1.62 in
Size / Dimension [z]	41.1 mm	41.1 mm
Standard Number	60950-1	60950-1
Type	Enclosed	Open Frame, Enclosed
Voltage - Input [Max]	300 VDC, 264 VAC	264 - 300 VAC
Voltage - Input [Min]	120 VDC, 90 VAC	90 - 120 VAC
Voltage - Isolation	3000 V	3000 - 4000 V
Voltage - Output 1	48 V	48 V

AC/DC POWER SUPPLY SINGLE-OUT 48V 5.9(CONVECTION)A/8.4(FORCED AIR)A 425W 19-PIN

Part	Efficiency	Features	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Isolation	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Current - Output 1	Power (Watts)
SL POWER / Advanced Energy TU425S48E	90 %	DC Input Capable, Load Sharing, Remote Sense, Standby Output, Universal Input	Chassis Mount	1	3.3 in	157.4 mm	6.2 in	41.1 mm	83.8 mm	1.62 in	ITE (Commercial)	4000 V	48 V	90 VAC	264 VAC	CE, cURus, DEMKO	300 W, 425 W	Open Frame	-10 °C	70 °C
SL POWER / Advanced Energy TU425S48EF	90 %	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input	Chassis Mount	1	3.3 in	157.5 mm	6.2 in	41.1 mm	83.8 mm	1.62 in	ITE (Commercial)	3000 V	48 V	90 VAC, 120 VDC	264 VAC, 300 VDC	CE, cURus, DEMKO	403 W	Enclosed	-10 °C	70 °C	60950-1	8.4 A
SL POWER / Advanced Energy TU425S48EC	90 %	Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input	Chassis Mount	1	3.3 in	157.5 mm	6.2 in	41.1 mm	83.8 mm	1.62 in	ITE (Commercial)	3000 V	48 V	90 VAC, 120 VDC	264 VAC, 300 VDC	CE, cURus, DEMKO	182 W	Enclosed	-10 °C	70 °C	60950-1	3.8 A	312 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 300 VDC Input
