010632PW175

Active

Essentra Components

PAN PHILLIPS SCREW 6-32 THREAD 1

Search across all available documentation for this part.

Active

Essentra Components

PAN PHILLIPS SCREW 6-32 THREAD 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

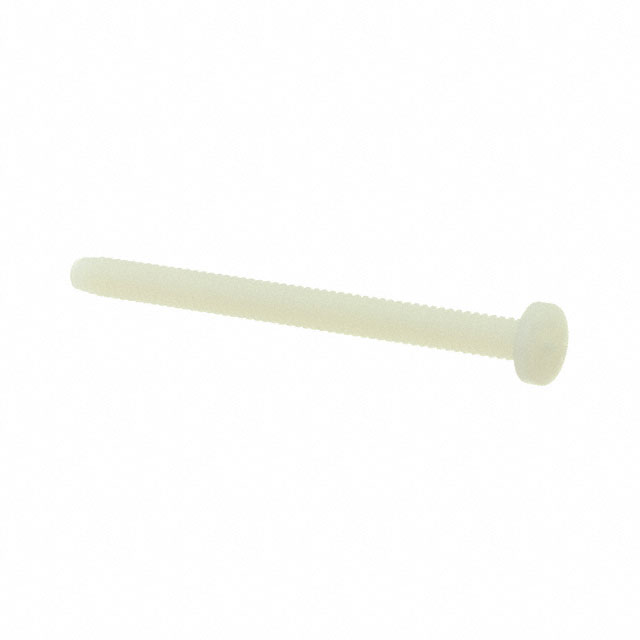

#6-32 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PAN PHILLIPS SCREW 6-32 THREAD 3

Part	Type	Material	Thread Size	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Head Height	Head Height	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head
Essentra Components 010632PW018	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm
Essentra Components 010632PW150	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm	1.5 in	38.1 mm
Essentra Components 010632PW175	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm
Essentra Components 010632PW015	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm
Essentra Components 010632PW050	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm		12.7 mm	1/2	0.5 in	15.04 mm	0.592 in
Essentra Components 010632PW162	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm
Essentra Components 010632PW100	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm		25.4 mm		1 in	27.74 mm	1.092 "
Essentra Components 010632PW043	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm					13.45 mm	0.53 in	0.438 in	11.11 mm
Essentra Components 010632PW062	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm		15.88 mm		0.625 in	18.21 mm	0.717 "			0.625 in
Essentra Components 010632PW056	Machine Screw	Nylon	#6-32	Pan Head	6.68 mm	0.263 in	Phillips	0.092 in	2.34 mm		14.29 mm		0.563 in
