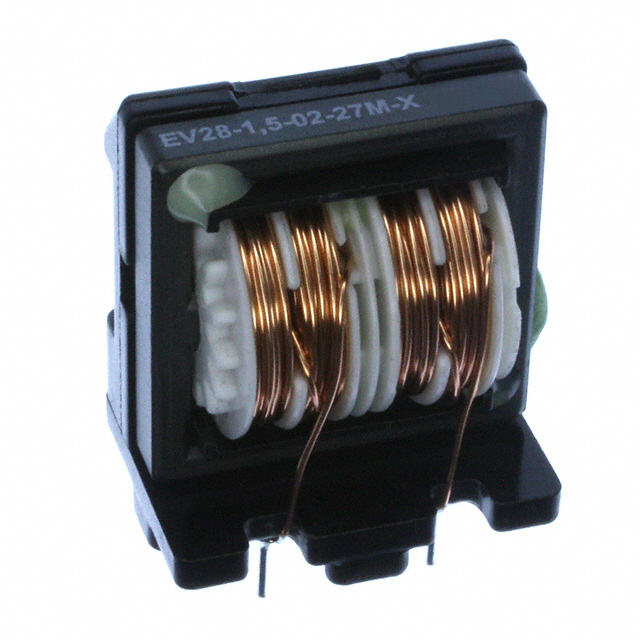

EV28-1.5-02-27M-X

Active

TE Connectivity Raychem Cable Protection

CMC 27MH 1.5A 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 27MH 1.5A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EV28-1.5-02-27M-X

Current Rating (Max) [Max]	1.5 A
DC Resistance (DCR) (Max) [Max]	287 mOhm
Filter Type	Power Line
Height (Max) [Max]	35.7 mm
Height (Max) [Max]	1.406 in
Inductance @ Frequency	27 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	29.2 mm
Size / Dimension [x]	1.15 "
Size / Dimension [y]	0.827 in
Size / Dimension [y]	21 mm
Voltage Rating - AC	250 V

Part	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) (Max)	Voltage Rating - AC	Filter Type	Number of Lines	Inductance @ Frequency	Operating Temperature [custom]	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection EV28-1.5-02-20M	1.5 A	0.827 in	21 mm	29.2 mm	1.15 "	282 mOhm	250 V	Power Line	2	20 mH	-25 °C 100 °C	4 Lead	Vertical	35.7 mm	1.406 in	Through Hole
TE Connectivity Raychem Cable Protection EV28-1.5-02-27M-X	1.5 A	0.827 in	21 mm	29.2 mm	1.15 "		250 V	Power Line	2	27 mH	-25 °C 100 °C	4 Lead	Vertical	35.7 mm	1.406 in	Through Hole	287 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 287mOhm
