1241.1113.7094

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

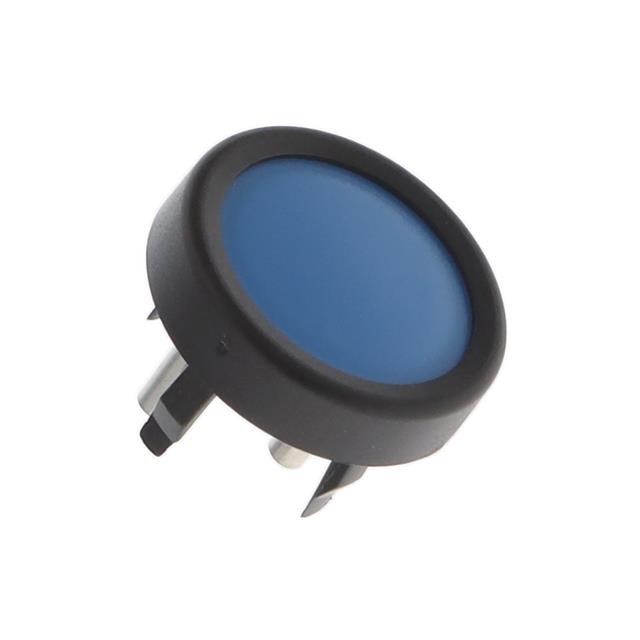

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1241.1113.7094	1241.1113 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Blue	Blue, White, Black, Green
Current Rating (Amps)	125 mA	125 mA
Electrical Life	1000000 Cycles	1000000 Cycles
Features	Tactile Feedback	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	13 mm	13 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - DC	48 V	48 V

SWITCH PUSH SPST-NO 125MA 48V

Part	Ingress Protection	Mechanical Life	Current Rating (Amps)	Circuit	Actuator Type	Termination Style	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Electrical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Switch Function	Features	Type	Voltage Rating - DC
SCHURTER Inc. 1241.1113.7094	IP65 - Dust Tight, Water Resistant	1000000 Cycles	125 mA	SPST-NO	Button, Flush, Round	Solder Lug	No Marking	-25 °C	60 °C	Blue	1000000 Cycles	13 mm	Panel Mount, Snap-In	Off-Mom	Tactile Feedback	Standard	48 V
SCHURTER Inc. 1241.1113.7098	IP65 - Dust Tight, Water Resistant	1000000 Cycles	125 mA	SPST-NO	Button, Flush, Round	Solder Lug	No Marking	-25 °C	60 °C	White	1000000 Cycles	13 mm	Panel Mount, Snap-In	Off-Mom	Tactile Feedback	Standard	48 V
SCHURTER Inc. 1241.1113.7097	IP65 - Dust Tight, Water Resistant	1000000 Cycles	125 mA	SPST-NO	Button, Flush, Round	Solder Lug	No Marking	-25 °C	60 °C	Black	1000000 Cycles	13 mm	Panel Mount, Snap-In	Off-Mom	Tactile Feedback	Standard	48 V
SCHURTER Inc. 1241.1113.7095	IP65 - Dust Tight, Water Resistant	1000000 Cycles	125 mA	SPST-NO	Button, Flush, Round	Solder Lug	No Marking	-25 °C	60 °C	Green	1000000 Cycles	13 mm	Panel Mount, Snap-In	Off-Mom	Tactile Feedback	Standard	48 V
SCHURTER Inc. 1241.1113.6096	IP65 - Dust Tight, Water Resistant	1000000 Cycles	125 mA	SPST-NO	Button, Flush, Round	Solder Lug	No Marking	-25 °C	60 °C		1000000 Cycles	13 mm	Panel Mount, Snap-In	Off-Mom	Tactile Feedback	Standard	48 V
