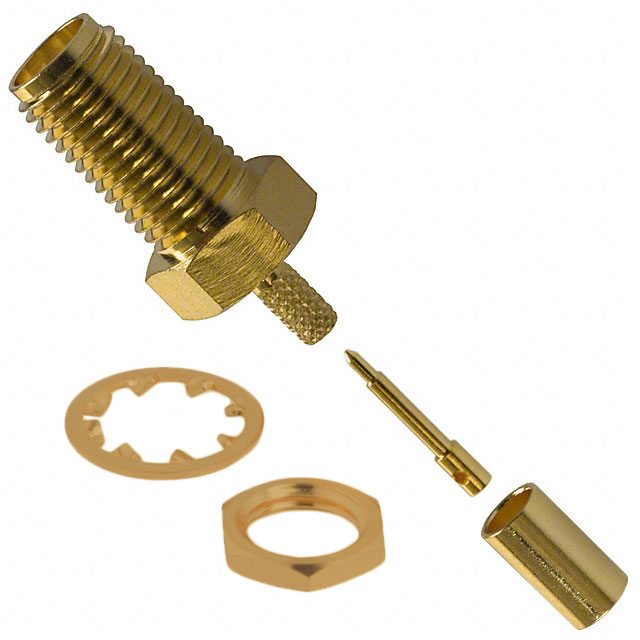

132117RP

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132117RP

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Ports	Cable Group	Includes	Center Contact Plating	Impedance	Connector Type	Frequency - Max [Max]	Mating Cycles	Body Material	Housing Color	Center Contact Material	Connector Style	Contact Termination	Dielectric Material	Mounting Type	Shield Termination	Body Finish
Amphenol RF 132117RP	-65 ░C	165 °C	375 V	1	188 188A 316 LMR-100 M17/119-RG174 RG-174	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Gold	50 Ohms	Jack Male Pin	12.4 GHz	500	Brass	Gold	Brass	RP-SMA	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
