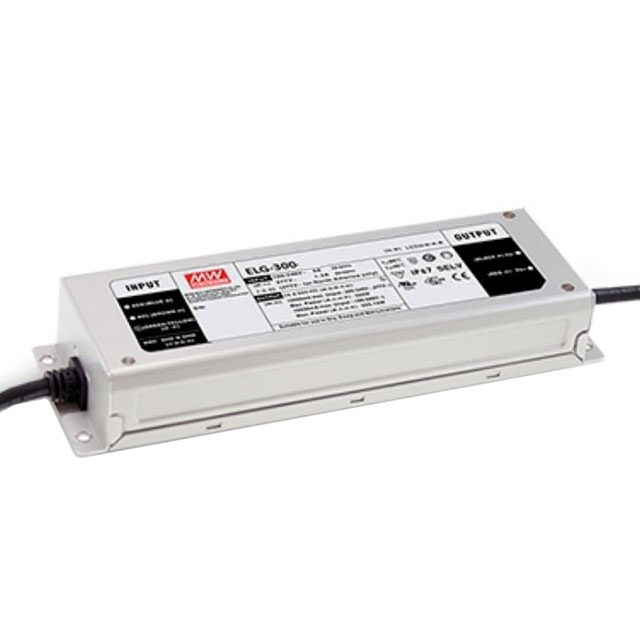

ELG-300-24A
ActiveMEAN WELL USA Inc.
O/P +24V/12500MA
ELG-300-24A
ActiveMEAN WELL USA Inc.
O/P +24V/12500MA
Description
General part information
ELG-300 Series
12.5A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | ELG-300-24A |
|---|---|
| Approval Agency | KC, CCC, CE, EAC, CB, ENEC, cURus |
| Current - Output (Max) | 12.5 A |
| Efficiency | 94 % |
| Features | OCP, SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 300 W |
| Ratings | IP67 |
| Size / Dimension Height | 1.56 in |
| Size / Dimension Length | 8.74 in |
| Size / Dimension Width | 3.03 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) | 305 V |
| Voltage - Input (Min) | 100 VAC |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output | 24 V |
