89757 0081000

Active

Belden Inc.

MULTI-PAIR 14CON 24AWG GRY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 14CON 24AWG GRY

Technical Specifications

Parameters and characteristics for this part

Specification	89757 0081000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.17 mm
Jacket (Insulation) Diameter [diameter]	0.361 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	14
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Material	Conductor Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length	Cable Type	Features	Conductor Insulation	Number of Conductors	Shield Coverage	Voltage	Wire Gauge
Belden Inc. 89757 0081000	Aluminum	Copper Tinned	UL Style CMP	0.356 mm	0.014 in	Plenum Polyvinylidene Fluoride (PVDF)	9.17 mm	0.361 in	Foil	32 AWG	7	Gray	1000 ft	304.8 m	Multi-Pair	Drain Wire	Foam Fluorinated Ethylene-Propylene (FFEP)	14	100 %	300 V	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 32.49

General part information

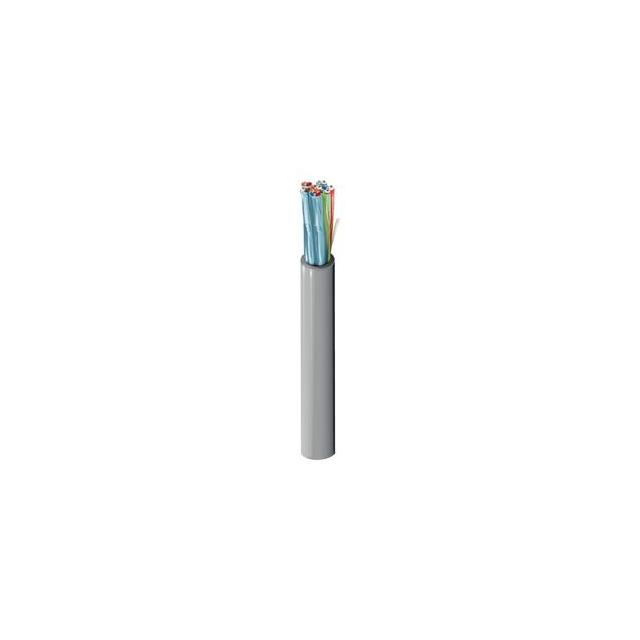

14 (7 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

No documents available
