PHB.2B.312.CYMD62Z

Active

LEMO

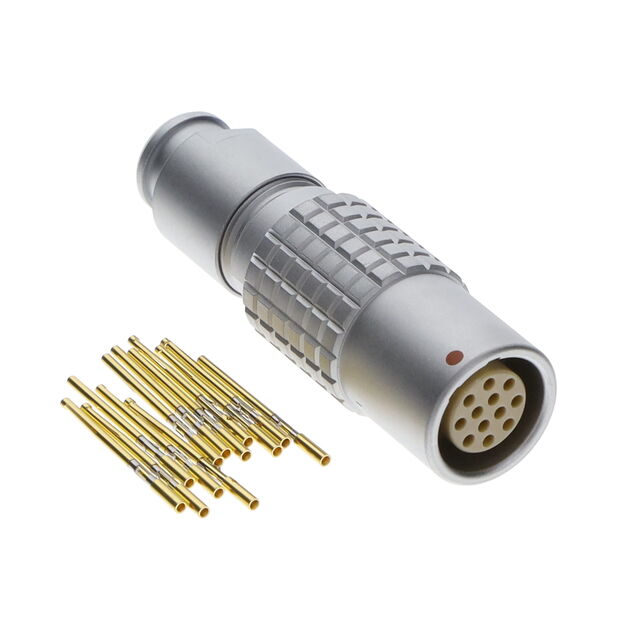

CONN RCPT FMALE 12POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 12POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHB.2B.312.CYMD62Z	PHB.2B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.122 in
Cable Opening	-	0.157 in
Cable Opening	-	4 mm
Cable Opening	-	3.1 mm
Cable Opening [Max] [diameter]	6.2 mm	6.2 mm
Cable Opening [Max] [diameter]	0.244 in	0.244 in
Cable Opening [Min] [diameter]	5.2 mm	5.2 mm
Cable Opening [Min] [diameter]	0.205 in	0.205 in
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	7 - 25 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	2 - 12
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	B	B
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	312	302 - 312
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN RCPT FMALE 12POS GOLD CRIMP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Contact Material	Shell Material	Termination	Features	Backshell Material, Plating	Contact Finish - Mating	Color	Primary Material	Insert Material	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Shell Finish	Mounting Type	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO PHB.2B.312.CYMD62Z	59 Áin	1.5 Ám	12	UL94 V-0	7 A	Bronze	Brass	Crimp	Backshell	Brass, Chrome	Gold	Silver	Metal	Polyetheretherketone (PEEK)	Push-Pull	6.2 mm	5.2 mm	0.205 in	0.244 in	IP50	312	-55 °C	250 °C	Receptacle, Female Sockets	B	Chrome	Free Hanging (In-Line)	Shielded
LEMO PHB.2B.302.CLLM42Z	59 Áin	1.5 Ám	2	UL94 V-0	25 A	Bronze	Brass		Backshell	Brass, Chrome	Gold	Silver	Metal	Polyetheretherketone (PEEK)	Push-Pull					IP50	302	-55 °C	250 °C	Receptacle, Female Sockets	B	Chrome	Free Hanging (In-Line)	Shielded	0.122 in	0.157 in	4 mm	3.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Female Sockets Crimp
