646574-1
ObsoleteTE Connectivity AMP Connectors

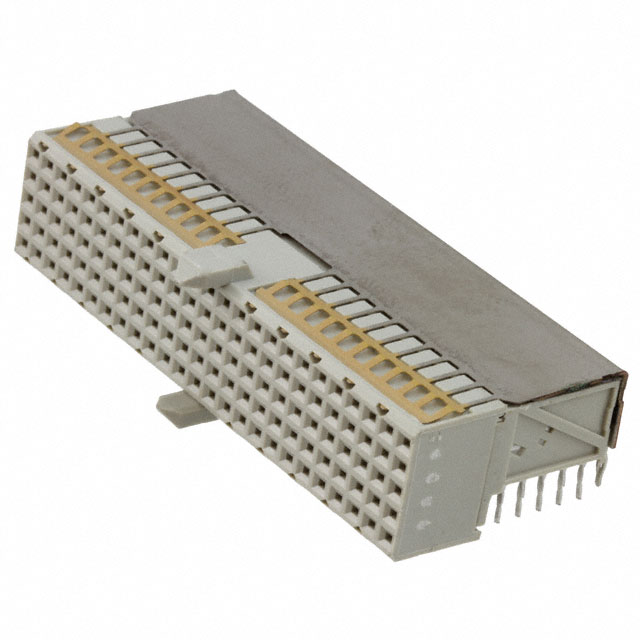

CONN RECEPT 125POS 2MM PRESS-FIT
646574-1
ObsoleteTE Connectivity AMP Connectors
CONN RECEPT 125POS 2MM PRESS-FIT
Description
General part information
646574 Series
125 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 646574-1 |
|---|---|
| Connector Style | AB 25 |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5 µin |
| Current Rating | 1.5 A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Termination | Press-Fit |
| Voltage Rating | 500 V |
