Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-965640-5 | 965640 Series |
|---|---|---|
| - | - | |
| Color | Green | Green, Brown, Blue, Yellow, Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Material | - | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 3 | 2 - 3 |
| Operating Temperature | - | 100 °C |
| Operating Temperature | - | -30 ░C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 5.51 mm | 5.5 - 5.51 mm |
| Row Spacing | - | 0.217 in |
| Row Spacing | - | 0.236 in |
| Row Spacing | - | 6 mm |
| Row Spacing [x] | 0.217 in | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.54 | |||
| 1200 | $ 0.53 | |||
965640 Series

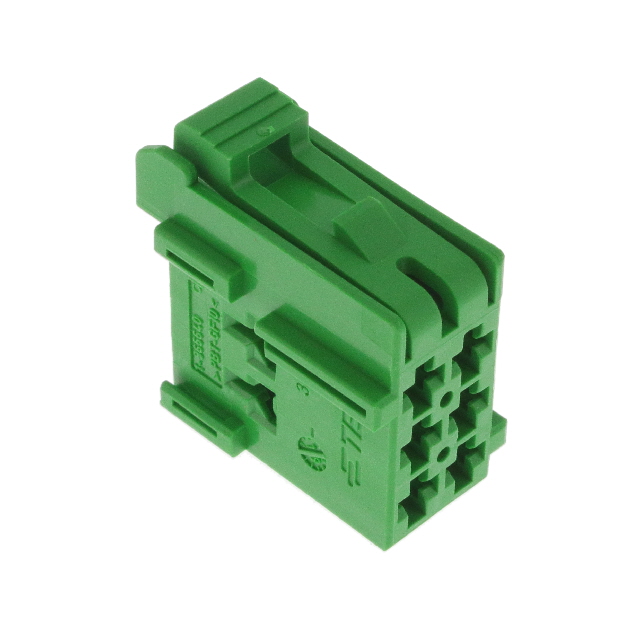

CONN RCPT HSG 6POS 5.00MM
| Part | Number of Positions | Number of Rows | Mounting Type | Connector Type | Pitch [x] | Pitch [x] | Color | Fastening Type | Row Spacing [x] | Row Spacing | Contact Termination | Note | Contact Type | Row Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Row Spacing [Max] | Row Spacing [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-965640-5 | 6 | 3 | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Green | Latch Holder | 0.217 in | 5.51 mm | Crimp | Contacts Not Included | Female Socket | ||||||
TE Connectivity AMP Connectors 1-965640-2 | 6 | 3 | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Brown | Latch Holder | 5.5 mm | Crimp | Female Socket | 0.217 in | 100 °C | -30 ░C | Polybutylene Terephthalate (PBT), Glass Filled | ||||
TE Connectivity AMP Connectors 1-965640-7 | |||||||||||||||||||
TE Connectivity AMP Connectors 1-965640-1 | 6 | 3 | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Blue | Latch Holder | 0.217 in | 5.51 mm | Crimp | Contacts Not Included | Female Socket | ||||||
TE Connectivity AMP Connectors 1-965640-6 | 6 | 3 | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Yellow | Latch Holder | 0.217 in | 5.51 mm | Crimp | Contacts Not Included | Female Socket | ||||||
TE Connectivity AMP Connectors 1-965640-3 | 6 | 3 | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Gray | Latch Holder | 0.217 in | 5.51 mm | Crimp | Contacts Not Included | Female Socket | ||||||
TE Connectivity AMP Connectors 1-965640-4 | 6 | 2 | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Latch Holder | Crimp | Female Socket | 100 °C | -30 ░C | Polybutylene Terephthalate (PBT), Glass Filled | 0.236 in | 6 mm |
Description
General part information
965640 Series
6 Rectangular Connectors - Housings Receptacle Green 0.197" (5.00mm)
