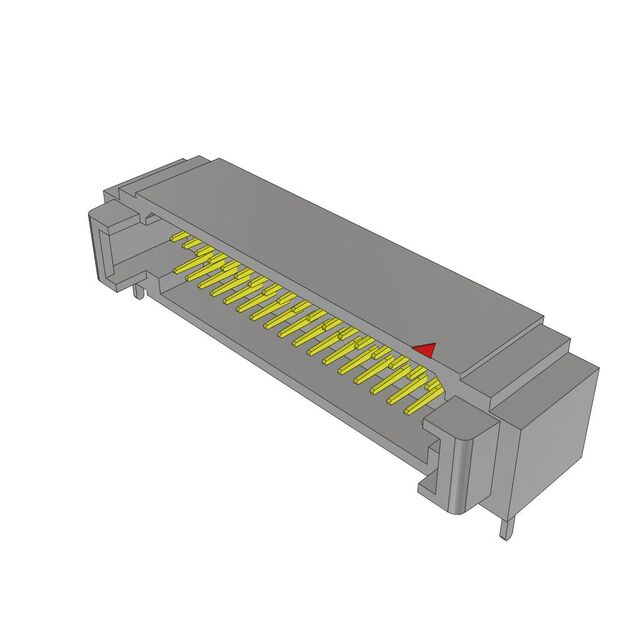

T1M-18-GF-DH

Active

Samtec Inc.

DISCRETE WIRE TERMINAL STRIP, 1.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T1M-18-GF-DH

Active

Samtec Inc.

DISCRETE WIRE TERMINAL STRIP, 1.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-18-GF-DH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.246 in
Insulation Height	6.25 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-18 Series

Part	Connector Type	Contact Finish - Mating	Number of Rows	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Finish - Post	Number of Positions	Mounting Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Type	Style	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Shape	Shrouding	Fastening Type	Current Rating (Amps)
Samtec Inc. T1M-18-GF-DV-K	Header	Gold	2	Pick and Place	3 µin	0.076 µm	Solder	Gold	36	Surface Mount	Phosphor Bronze	3 µin	0.076 µm	250 VAC 353 VDC	Male Pin	Board to Cable/Wire	6.8 mm	0.268 in	85 °C	-55 °C	Natural	UL94 V-0	All	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Square	Shrouded - 4 Wall	Locking Ramp	3.3 A
Samtec Inc. T1M-18-T-S-RA-TR	Header		1				Solder	Tin	18	Surface Mount Right Angle	Phosphor Bronze			250 VAC 353 VDC	Male Pin	Board to Cable/Wire	3.2 mm	0.126 in	85 °C	-55 °C	Natural	UL94 V-0	All	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Square	Shrouded - 4 Wall	Locking Ramp	3.3 A
Samtec Inc. T1M-18-GF-S-V-K-TR	Header	Gold	1	Pick and Place	3 µin	0.076 µm	Solder	Gold	18	Surface Mount	Phosphor Bronze	3 µin	0.076 µm	250 VAC 353 VDC	Male Pin	Board to Cable/Wire	4.25 mm	0.167 in	85 °C	-55 °C	Natural	UL94 V-0	All	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Square	Shrouded - 4 Wall	Locking Ramp	3.3 A
Samtec Inc. T1M-18-GF-DH	Header	Gold	2		3 µin	0.076 µm	Solder	Gold	36	Surface Mount Right Angle	Phosphor Bronze	3 µin	0.076 µm	250 VAC 353 VDC	Male Pin	Board to Cable/Wire	6.25 mm	0.246 in	85 °C	-55 °C	Natural	UL94 V-0	All	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Square	Shrouded - 4 Wall	Locking Ramp	3.3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 4.08

Description

General part information

T1M-18 Series

Connector Header Surface Mount, Right Angle 36 position 0.039" (1.00mm)
