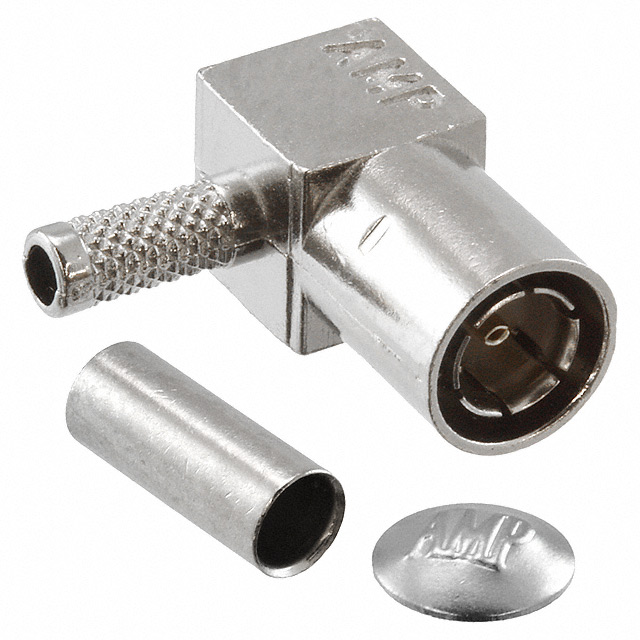

Specification	5415484-1

Body Finish	Nickel
Body Material	Zinc
Cable Group	RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Mini
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	75 Ohm
Includes	End Cap, Connector, Ferrule
Includes Total Count	3 pcs
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

5415484 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Body Finish	Dielectric Material	Includes Total Count	Includes	Center Contact Plating	Mounting Type	Connector Style	Connector Type	Contact Termination	Shield Termination	Fastening Type	Cable Group	Frequency - Max	Housing Color	Center Contact Material	Number of Ports	Impedance
TE Connectivity AMP Connectors 5415484-2	-65 °C	165 °C	Zinc	Nickel	Polytetrafluoroethylene (PTFE)	3 pcs	Connector End Cap Ferrule	Gold	Free Hanging (In-Line) Right Angle	Mini SMB	Female Socket Plug	Solder	Crimp	Snap-On	RG-179	4 GHz	Silver	Beryllium Copper	1	75 Ohm
TE Connectivity AMP Connectors 5415484-1	-65 °C	165 °C	Zinc	Nickel	Polytetrafluoroethylene (PTFE)	3 pcs	Connector End Cap Ferrule	Gold	Free Hanging (In-Line) Right Angle	Mini SMB	Female Socket Plug	Solder	Crimp	Snap-On	RG-179	4 GHz	Silver	Beryllium Copper	1	75 Ohm
