806-22-001-30-001191

Active

Mill-Max Manufacturing Corp.

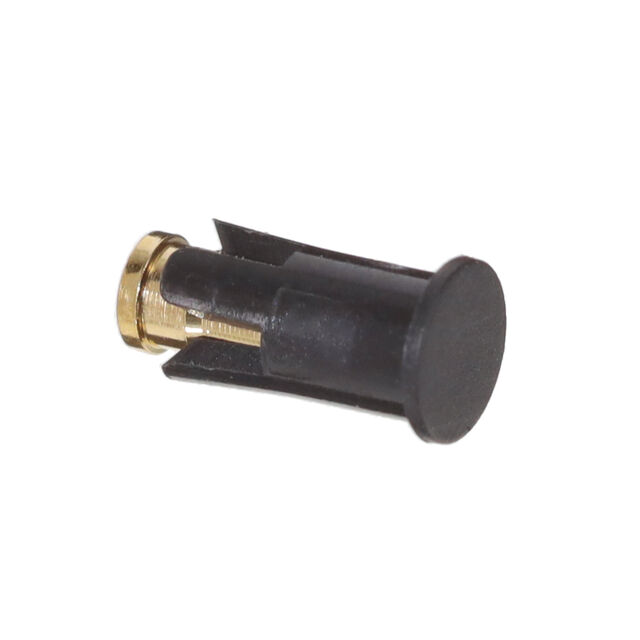

CONTACT SPRING LOADED SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

806-22-001-30-001191

Active

Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	806-22-001-30-001191

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Copper Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	2 A
Features	Pick and Place
Material Flammability Rating	UL94 V-0
Mating Cycles	1000000
Mounting Type	Surface Mount
Operating Force - Initial	25 gf
Operating Force - Mid Compression	60 gf
Pad Layout Dimension [custom]	1.83 mm
Pad Layout Dimension [custom]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm
Recommended Working Height [z]	3 mm
Recommended Working Height [z]	0.118 in

806-22 Series

Part	Features	Pad Layout Dimension [custom]	Pad Layout Dimension [custom]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Recommended Working Height [z]	Recommended Working Height [z]	Contact Type	Operating Force - Initial	Mounting Type	Plunger Size [diameter]	Plunger Size [diameter]	Current Rating (Amps)	Operating Force - Mid Compression	Material Flammability Rating	Maximum Working Height [Max]	Maximum Working Height [Max]	Recommended Working Height	Recommended Working Height	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]
Mill-Max Manufacturing Corp. 806-22-001-30-010191	Pick and Place	1.83 mm	0.072 in	Gold	Copper Alloy	0.51 µm	20 µin	1000000	4.81 mm	0.189 in	Sleeve & Plunger (Pogo Pins)	25 gf	Surface Mount	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0
Mill-Max Manufacturing Corp. 806-22-001-30-014191	Pick and Place	1.83 mm	0.072 in	Gold	Copper Alloy	0.51 µm	20 µin	1000000	6.79 mm	0.267 in	Sleeve & Plunger (Pogo Pins)	25 gf	Surface Mount	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0
Mill-Max Manufacturing Corp. 806-22-001-30-013191	Pick and Place	1.83 mm	0.072 in	Gold	Copper Alloy	0.51 µm	20 µin	1000000			Sleeve & Plunger (Pogo Pins)	25 gf	Surface Mount	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0	0.275 in	6.99 mm	6.29 mm	0.248 in
Mill-Max Manufacturing Corp. 806-22-001-10-004191	Pick and Place			Gold	Copper Alloy	0.51 µm	20 µin	1000000	4.3 mm	0.169 in	Sleeve & Plunger (Pogo Pins)	25 gf	Through Hole	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0	0.197 in	5 mm			1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 806-22-001-30-003191	Pick and Place	1.83 mm	0.072 in	Gold	Copper Alloy	0.51 µm	20 µin	1000000			Sleeve & Plunger (Pogo Pins)	25 gf	Surface Mount	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0	0.177 in	4.5 mm	3.8 mm	0.15 in
Mill-Max Manufacturing Corp. 806-22-001-30-002191	Pick and Place	1.83 mm	0.072 in	Gold	Copper Alloy	0.51 m	20 in	1000000	3.44 mm	0.135 in	Sleeve & Plunger (Pogo Pins)	25 gf	Surface Mount	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0	0.155 in	3.94 mm
Mill-Max Manufacturing Corp. 806-22-001-30-001191	Pick and Place	1.83 mm	0.072 in	Gold	Copper Alloy	0.51 µm	20 µin	1000000	3 mm	0.118 in	Sleeve & Plunger (Pogo Pins)	25 gf	Surface Mount	0.042 in	1.07 mm	2 A	60 gf	UL94 V-0
