Specification	13-000131

Color	Green
Connector Layout	DA, A
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 7.5A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Ingress Protection	IP20
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Normal)	5
Number of Positions (Power)	2
Number of Positions (Total)	7
Number of Rows	2
Part Code	7W2
Shell Material	Steel
Shell Size	2
Termination	Solder Cup
Voltage Rating	250 V
Wire Gauge	20 AWG, 10-12 AWG

13-0001 Series

Part	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Material Flammability Rating	Number of Rows	Contact Finish Thickness	Contact Finish	Connector Style	Mounting Type	Connector Type	Contact Type	Current Rating Options	Termination	Ingress Protection	Finish	Shell Material	Flange Feature	Shell Size	Part Code	Connector Layout	Color	Contact Material	Wire Gauge	Voltage Rating	Dielectric Material	Features	Note	Mating Cycles	Shell Finish Thickness	Backset Spacing
McGill Microwave Systems 13-000161	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Free Hanging (In-Line)	Female Sockets Receptacle	Power Signal	30A 7.5A	Solder Cup	IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Green	Copper Alloy	10-12 AWG 20 AWG	250 V	Glass Filled Polybutylene Terephthalate (PBT)
McGill Microwave Systems 13-000121	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Through Hole	Male Pins Plug	Power Signal	20A 7.5A	Solder	IP20	Tin Plated	Steel	Board Side (4-40)	2	7W2	A DA	Green	Copper Alloy		250 V	Glass Filled Polybutylene Terephthalate (PBT)	Board Lock Grounding Indents
McGill Microwave Systems 13-000141	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Free Hanging (In-Line)	Female Sockets Receptacle	Power Signal	20A 7.5A	Solder Cup	IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Green	Copper Alloy	12-14 AWG 20 AWG	250 V	Glass Filled Polybutylene Terephthalate (PBT)
McGill Microwave Systems 13-000111	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Through Hole	Male Pins Plug	Power Signal	20A 7.5A	Solder	IP20	Tin Plated	Steel	Female Screwlock (4-40) Mating Side	2	7W2	A DA	Green	Copper Alloy		250 V	Glass Filled Polybutylene Terephthalate (PBT)	Board Lock Grounding Indents
McGill Microwave Systems 13-000131	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Free Hanging (In-Line)	Female Sockets Receptacle	Power Signal	30A 7.5A	Solder Cup	IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Green	Copper Alloy	10-12 AWG 20 AWG	250 V	Glass Filled Polybutylene Terephthalate (PBT)

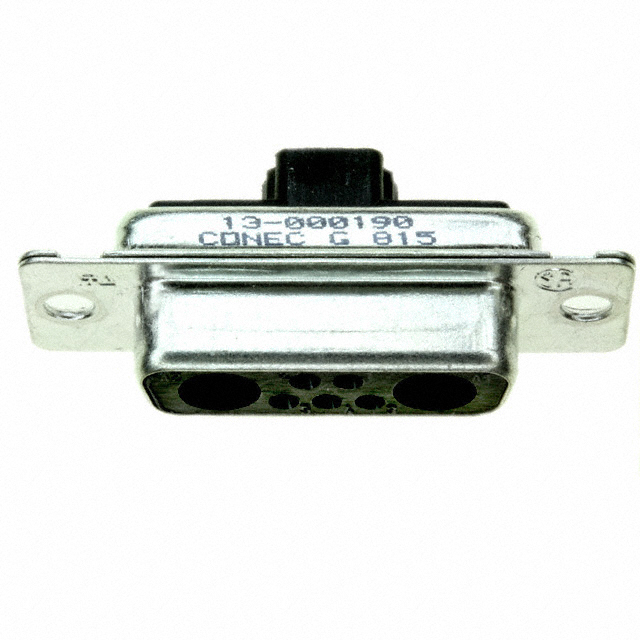

McGill Microwave Systems 13-000190	7	5	2		2			Combo D-Sub	Free Hanging (In-Line)	Receptacle for Female Contacts	Power Signal			IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Black				Glass Filled Polybutylene Terephthalate (PBT)		Contacts Not Included	250 cycles	315 µin
McGill Microwave Systems 13-000101	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Board Edge Right Angle Through Hole	Male Pins Plug	Power Signal	40A 7.5A	Solder	IP20	Tin Plated	Steel	Housing Shell (4-40)	2	7W2	A DA	Green	Copper Alloy		250 V	Glass Filled Polybutylene Terephthalate (PBT)	Board Lock Grounding Indents Mounting Brackets				0.458 in
McGill Microwave Systems 13-000171	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Free Hanging (In-Line)	Female Sockets Receptacle	Power Signal	20A 7.5A	Solder Cup	IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Green	Copper Alloy	12-14 AWG 20 AWG	250 V	Glass Filled Polybutylene Terephthalate (PBT)
McGill Microwave Systems 13-000181	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Free Hanging (In-Line)	Female Sockets Receptacle	Power Signal	10A 7.5A	Solder Cup	IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Green	Copper Alloy	16-20 AWG 20 AWG	250 V	Glass Filled Polybutylene Terephthalate (PBT)
McGill Microwave Systems 13-000151	7	5	2	UL94 V-0	2	30 µin	Gold	Combo D-Sub	Free Hanging (In-Line)	Female Sockets Receptacle	Power Signal	10A 7.5A	Solder Cup	IP20	Tin Plated	Steel	Housing Shell (Unthreaded)	2	7W2	A DA	Green	Copper Alloy	16-20 AWG 20 AWG	250 V	Glass Filled Polybutylene Terephthalate (PBT)
