SMTJ76CAT

Active

Eaton - Electronics Division

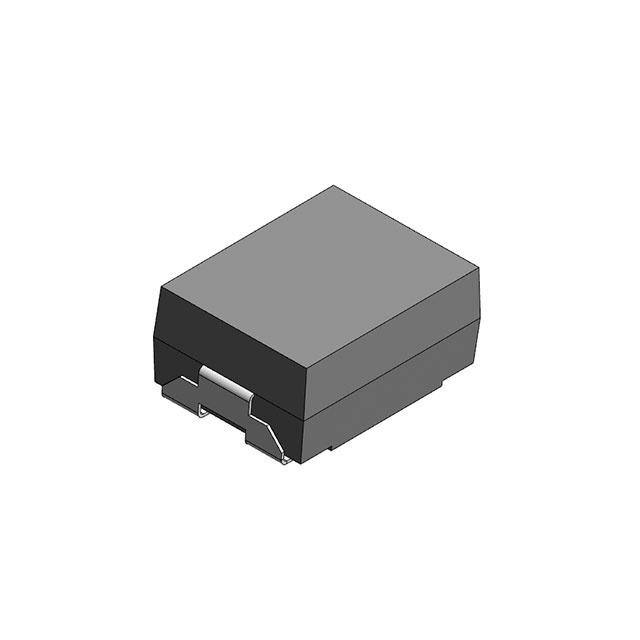

TVS DIODE 76VWM 150VC 4SMT

Search across all available documentation for this part.

Active

Eaton - Electronics Division

TVS DIODE 76VWM 150VC 4SMT

Technical Specifications

Parameters and characteristics for this part

Specification	SMTJ76CAT

Applications	Telecom, Ethernet
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	3500 A
Current - Peak Pulse (10/1000µs)	3.5 kA
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, J-Lead
Power Line Protection	False
Supplier Device Package	4-SMT
Type	Zener
Voltage - Breakdown (Min) [Min]	85 V
Voltage - Clamping (Max) @ Ipp [Max]	150 V
Voltage - Reverse Standoff (Typ)	76 V

TVS DIODE 76VWM 150VC 4SMT

Part	Applications	Voltage - Reverse Standoff (Typ)	Type	Mounting Type	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power Line Protection
Eaton - Electronics Division SMTJ76CAT	Ethernet, Telecom	76 V	Zener	Surface Mount	1	150 V	4-SMT	3500 A	3.5 kA	85 V	-55 °C	150 °C	4-SMD, J-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150V Clamp 3500A (3.5kA) (8/20µs) Ipp Tvs Diode Surface Mount 4-SMT
