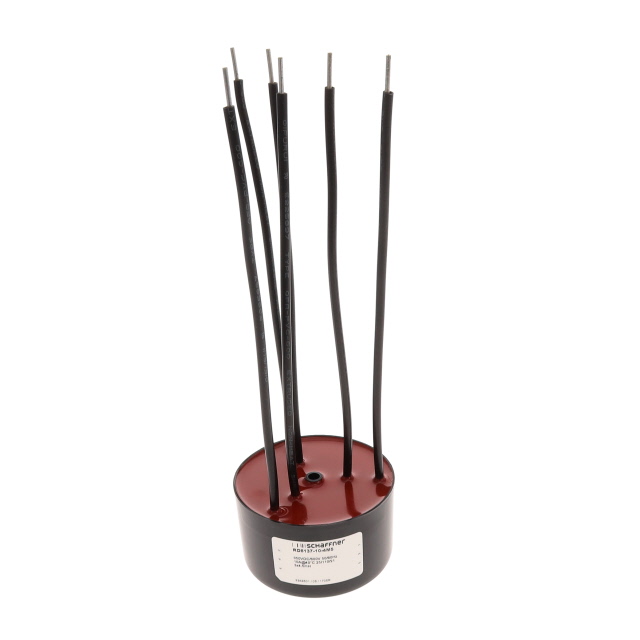

RD6137-10-4M5
ActiveTE Connectivity Raychem Cable Protection
CMC 4.5MH 10A 3LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD6137-10-4M5 |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 18.35 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.398 in |
| Height (Max) | 35.5 mm |
| Inductance @ Frequency | 400 Hz, 4.5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [y] | 60 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.51 | |
| 10 | $ 20.54 | |||
| 25 | $ 19.60 | |||
Description
General part information
RD6137 Series
4.5 mH @ 400 Hz 3 Line Common Mode Choke Through Hole 10A (Typ) DCR 18.35mOhm (Typ)
