130203
ActiveTE Connectivity AMP Connectors

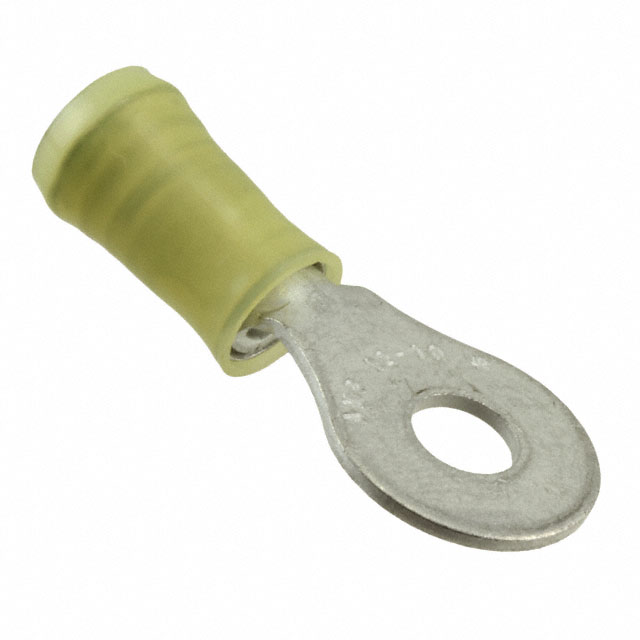

CONN RING CIRC 10-12AWG M5 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
130203
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 10-12AWG M5 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 130203 | 1302 Series |
|---|---|---|
| Color | Yellow | Yellow |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Features | Serrated Termination | Brazed Seam, Serrated Termination |
| Insulation | Insulated | Non-Insulated, Insulated |
| Insulation Diameter [Max] | 6.4 mm | 6.4 mm |
| Insulation Diameter [Max] | 0.252 " | 0.252 " |
| Insulation Diameter [Min] | 0.15 " | 0.15 " |
| Insulation Diameter [Min] | 3.81 mm | 3.81 mm |
| Length - Overall [x] | 1.331 in | 1.004 - 1.331 " |
| Length - Overall [x] | 33.81 mm | 25.5 - 33.81 mm |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud | 5 Stud, M5 Stud |
| Stud/Tab Size | - | 10 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 0.99 mm | 0.99 mm |
| Thickness | 0.039 in | 0.039 in |
| Thickness | - | 0.042 in |
| Thickness | - | 1.07 mm |
| Width - Outer Edges [custom] | 13.49 mm | 13.49 mm |
| Width - Outer Edges [custom] | 0.531 " | 0.531 " |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.21 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.06 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.96 | |||
1302 Series
CONN RING CIRC 10-12AWG #10
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Contact Finish | Insulation | Length - Overall [x] | Length - Overall [x] | Contact Material | Stud/Tab Size | Terminal Type | Features | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Termination | Thickness [custom] | Thickness [custom] | Stud/Tab Size | Thickness | Thickness | Material - Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 130232 | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | Non-Insulated | 25.5 mm | 1.004 " | Copper | 10 Stud | Circular | Brazed Seam, Serrated Termination | 13.49 mm | 0.531 " | Crimp | 0.042 in | 1.07 mm | |||||||||
TE Connectivity AMP Connectors 130228 | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | Non-Insulated | 25.5 mm | 1.004 " | Copper | Circular | Brazed Seam, Serrated Termination | 13.49 mm | 0.531 " | Crimp | 0.042 in | 1.07 mm | 5 Stud | |||||||||
TE Connectivity AMP Connectors 130203 | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | Insulated | 33.81 mm | 1.331 in | Copper | Circular | Serrated Termination | 13.49 mm | 0.531 " | Crimp | M5 Stud | 0.99 mm | 0.039 in | Nylon, Polyamide (PA) | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | Yellow |
Description
General part information
1302 Series
Ring Terminal Connector M5 Stud Circular 10-12 AWG Crimp
