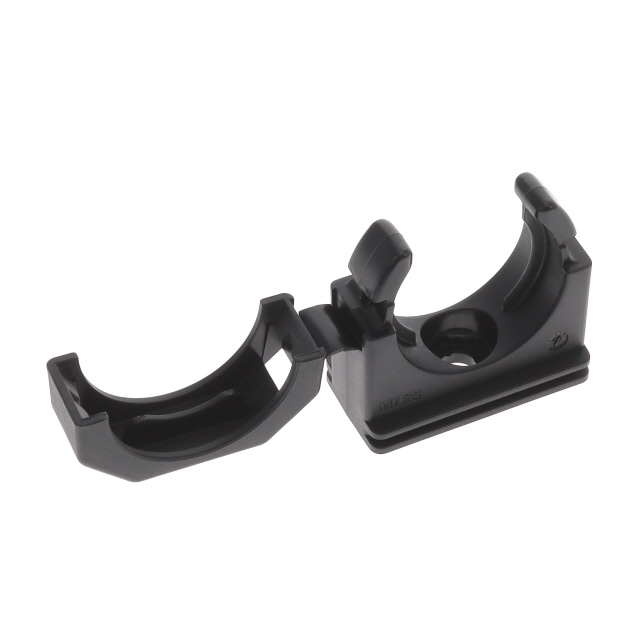

COPA-S-23B

Active

Fraenkische USA, LP

FIPLOCK, CONDUIT SUPPORT ONE-PIE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFIPLOCK®One Fitting Assembly Instructions ~

COPA-S-23B

Active

Fraenkische USA, LP

FIPLOCK, CONDUIT SUPPORT ONE-PIE

Deep-Dive with AI

DocumentsFIPLOCK®One Fitting Assembly Instructions ~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	COPA-S-23B

Color	Black
Height [z]	1.654 in
Height [z]	42 mm
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Fastener, Channel, Track
Opening Size [custom]	23 mm
Opening Size [custom]	0.906 in
Panel Hole Size	5.99 mm
Panel Hole Size	0.236 in
Type	C-Type, Clip
Type Attributes	Hinged, Locking
Width [y]	20 mm
Width [y]	0.787 in

COPA-S Series

Part	Type Attributes	Height [z]	Height [z]	Material Flammability Rating	Color	Width [y]	Width [y]	Type	Mounting Type	Length	Panel Hole Size	Panel Hole Size	Material	Opening Size [z]	Opening Size [z]	Length [x]	Length [x]	Opening Size [custom]	Opening Size [custom]	Length	Opening Size	Opening Size	Panel Hole Size [diameter]	Panel Hole Size [diameter]
Fraenkische USA, LP COPA-S-48G	Hinged Locking	2.678 in	68 mm	UL94 V-0	Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener	2.638 " 67 mm	5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6	48 mm	1.89 in
Fraenkische USA, LP COPA-S-17G	Hinged Locking	1.339 in	34 mm	UL94 V-0	Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener		5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6			33 mm	1.299 in
Fraenkische USA, LP COPA-S-23G	Hinged Locking	1.654 in	42 mm	UL94 V-0	Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener		5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6					23 mm	0.906 in
Fraenkische USA, LP COPA-S-17B	Hinged Locking	1.339 in	34 mm		Black	20 mm	0.787 in	C-Type Clip	Channel Track Fastener		5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6			33 mm	1.299 in
Fraenkische USA, LP COPA-S-07G	Hinged Locking	0.866 in	22 mm		Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener	19.5 mm	4 mm	0.157 in	Polyamide (PA66) Nylon 6/6							0.768 "	7 mm	0.276 in
Fraenkische USA, LP COPA-S-48B	Hinged Locking	2.678 in	68 mm		Black	20 mm	0.787 in	C-Type Clip	Channel Track Fastener	2.638 " 67 mm	5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6	48 mm	1.89 in
Fraenkische USA, LP COPA-S-36G	Hinged Locking	2.205 "	56 mm	UL94 V-0	Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener		5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6			55 mm	2.165 in	36 mm	1.417 in
Fraenkische USA, LP COPA-S-10G	Hinged Locking	0.984 in	25 mm		Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener	22 mm			Polyamide (PA66) Nylon 6/6							0.866 "			0.197 in	5 mm
Fraenkische USA, LP COPA-S-12G	Hinged Locking	1.063 in	27 mm	UL94 V-0	Gray	20 mm	0.787 in	C-Type Clip	Channel Track Fastener				Polyamide (PA66) Nylon 6/6			26 mm	1.024 "				11.99 mm	0.472 in	0.197 in	5 mm
Fraenkische USA, LP COPA-S-23B	Hinged Locking	1.654 in	42 mm		Black	20 mm	0.787 in	C-Type Clip	Channel Track Fastener		5.99 mm	0.236 in	Polyamide (PA66) Nylon 6/6					23 mm	0.906 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.87
		12	$ 1.63
		30	$ 1.56
		54	$ 1.53
		102	$ 1.46
		252	$ 1.32
		504	$ 1.22

Description

General part information

COPA-S Series

Cable Clip, C-Type Black Channel, Track; Fastener 0.906" (23.00mm)

Documents

Technical documentation and resources

FIPLOCK®One Fitting Assembly Instructions ~

Datasheet
