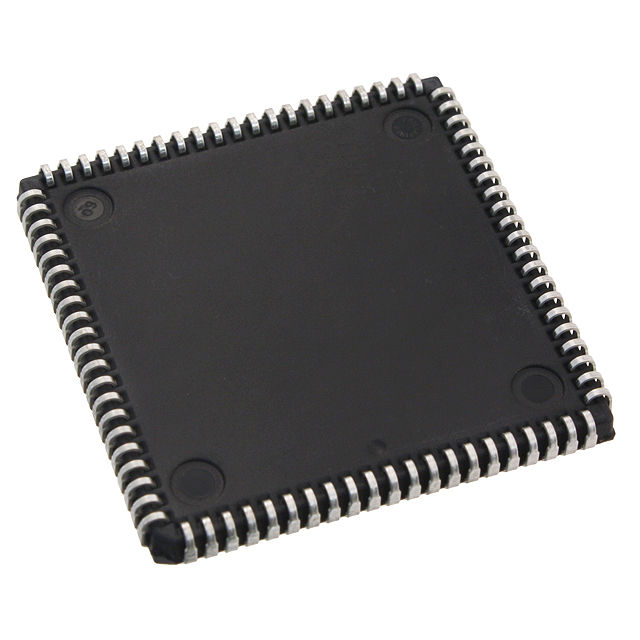

XCS10-3PC84C

Obsolete

AMD

IC FPGA 61 I/O 84PLCC

Search across all available documentation for this part.

Obsolete

AMD

IC FPGA 61 I/O 84PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	XCS10-3PC84C

Mounting Type	Surface Mount
Number of Gates	10000
Number of I/O	61
Number of LABs/CLBs	196
Number of Logic Elements/Cells	466
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	84-LCC (J-Lead)
Supplier Device Package	84-PLCC (29.31x29.31)
Total RAM Bits	6272 bits
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Total RAM Bits	Number of LABs/CLBs	Package / Case	Mounting Type	Supplier Device Package	Number of I/O	Number of Gates	Number of Logic Elements/Cells	Operating Temperature [Max]
AMD XCS10-3VQ100C	4.75 V	5.25 V	6272 bits	196	100-TQFP	Surface Mount	100-VQFP (14x14)	77	10000	466	85 °C
AMD XCS10-3VQG100C	4.75 V	5.25 V	6272 bits	196	100-TQFP	Surface Mount	100-VQFP (14x14)	77	10000	466	85 °C
AMD XCS10-3PC84C	4.75 V	5.25 V	6272 bits	196	84-LCC (J-Lead)	Surface Mount	84-PLCC (29.31x29.31)	61	10000	466	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Spartan® Field Programmable Gate Array (FPGA) IC 61 6272 466 84-LCC (J-Lead)
