1-1318301-5

Active

TE Connectivity AMP Connectors

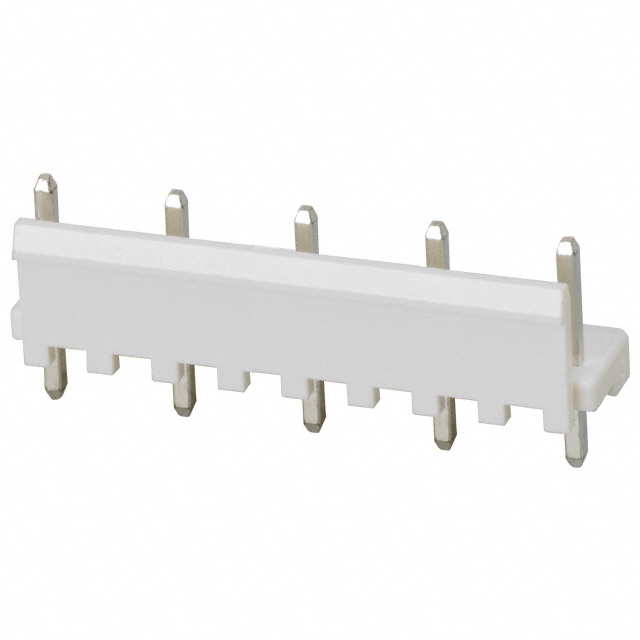

CONN HEADER VERT 9POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEP Conn Instr Sheet Datasheet

1-1318301-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 9POS 3.96MM

Deep-Dive with AI

DocumentsEP Conn Instr Sheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1404	$ 0.39

Description

General part information

1318301 Series

Connector Header Through Hole 9 position 0.156" (3.96mm)

Documents

Technical documentation and resources

EP Conn Instr Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1318301-5	1318301 Series

Applications	General Purpose, Industrial, Lighting	General Purpose, Industrial, Lighting
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	7.7 mm	7.7 mm
Contact Length - Mating	0.303 in	0.303 in
Contact Length - Post	0.146 in	0.146 in
Contact Length - Post	3.7 mm	3.7 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Natural	Natural
Insulation Height	0.118 in	0.118 in
Insulation Height	3 mm	3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	9	7 - 9
Number of Positions Loaded	-	3 - 4
Number of Positions Loaded [custom]	5	5
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Overall Contact Length	14.4 mm	14.4 mm
Overall Contact Length	0.567 "	0.567 "
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Shrouded - 1 Wall	Shrouded - 1 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

1318301 Series

CONN HEADER VERT 5POS 3.96MM

Part	Fastening Type	Applications	Current Rating (Amps)	Contact Material	Contact Shape	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Mounting Type	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Style	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Voltage Rating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded [custom]	Number of Positions
TE Connectivity AMP Connectors 1-1318301-3	Locking Ramp	General Purpose, Industrial, Lighting	7.5 A	Brass	Square	Shrouded - 1 Wall	-25 °C	105 ░C	Header	1	Through Hole	0.118 in	3 mm	Solder	Tin	Board to Cable/Wire	3	14.4 mm	0.567 "	250 VAC	Natural	7.7 mm	0.303 in	Polybutylene Terephthalate (PBT), Glass Filled	0.146 in	3.7 mm	Male Pin	0.156 in	3.96 mm	UL94 V-0
TE Connectivity AMP Connectors 1-1318301-5	Locking Ramp	General Purpose, Industrial, Lighting	7.5 A	Brass	Square	Shrouded - 1 Wall	-25 °C	105 ░C	Header	1	Through Hole	0.118 in	3 mm	Solder	Tin	Board to Cable/Wire		14.4 mm	0.567 "	250 VAC	Natural	7.7 mm	0.303 in	Polybutylene Terephthalate (PBT), Glass Filled	0.146 in	3.7 mm	Male Pin	0.156 in	3.96 mm	UL94 V-0	5	9
TE Connectivity AMP Connectors 1-1318301-4	Locking Ramp	General Purpose, Industrial, Lighting	7.5 A	Brass	Square	Shrouded - 1 Wall	-25 °C	105 ░C	Header	1	Through Hole	0.118 in	3 mm	Solder	Tin	Board to Cable/Wire	4	14.4 mm	0.567 "	250 VAC	Natural	7.7 mm	0.303 in	Polybutylene Terephthalate (PBT), Glass Filled	0.146 in	3.7 mm	Male Pin	0.156 in	3.96 mm	UL94 V-0		7
