SIT9346AI-2B2A33E50.000000

Active

SiTime

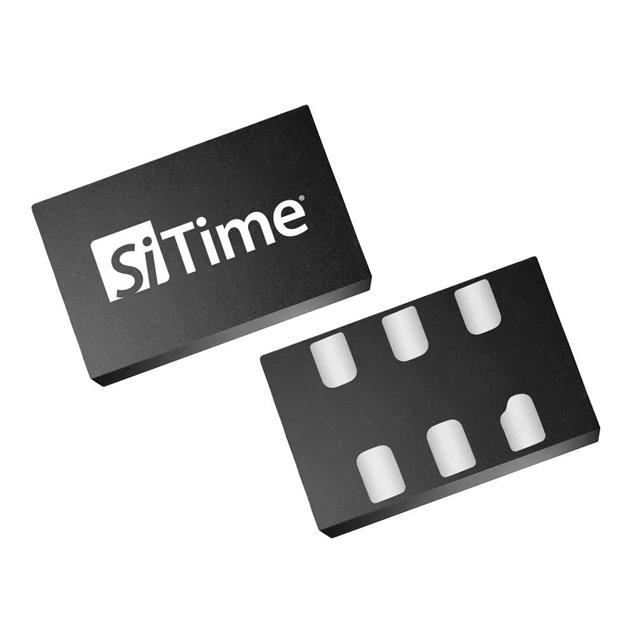

MEMS OSC XO 50.000000 MHZ LVDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT9346AI-2B2A33E50.000000

Active

SiTime

MEMS OSC XO 50.000000 MHZ LVDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	10	$ 44.17

Description

General part information

SIT9346 Series

50 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SIT9346AI-2B2A33E50.000000	SIT9346 Series

Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max) [Max]	58 mA	58 mA
Current - Supply (Max) [Max]	79 mA	79 - 89 mA
Frequency	50 MHz	25 - 200 MHz
Frequency Stability	25 ppm	10 - 50 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output	LVDS	LVDS, HCSL, LVPECL
Package / Case	6-SMD, No Lead	6-SMD, No Lead Exposed Pad, 6-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 - 7 mm
Size / Dimension [x]	0.126 in	0.126 - 0.276 "
Size / Dimension [y]	2.5 mm	2.5 - 5 mm
Size / Dimension [y]	0.098 in	0.098 - 0.197 "
Supplier Device Package	-	6-PQFD (3.2x2.5)
Type	XO (Standard)	XO (Standard)
Voltage - Supply	3.3 V	2.5 - 3.3 V

SIT9346 Series

MEMS OSC XO 100.000000 MHZ LVDS

Part	Current - Supply (Disable) (Max) [Max]	Voltage - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Frequency	Output	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator	Frequency Stability	Type	Function	Supplier Device Package
SiTime SIT9346AI-2EFA33E100.000000	58 mA	3.3 V	0.035 "	0.9 mm	79 mA	100 MHz	LVDS	Surface Mount	85 °C	-40 °C	6-SMD, No Lead Exposed Pad	7 mm	5 mm	0.276 "	0.197 "	MEMS	10 ppm	XO (Standard)	Enable/Disable
SiTime SIT9346AI-2B1A33E40.000000	58 mA	3.3 V	0.035 "	0.9 mm	79 mA	40 MHz	LVDS	Surface Mount	85 °C	-40 °C	6-SMD, No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	20 ppm	XO (Standard)	Enable/Disable	6-PQFD (3.2x2.5)
SiTime SIT9346AI-4C1A33E100.000000	58 mA	3.3 V	0.035 "	0.9 mm	89 mA	100 MHz	HCSL	Surface Mount	85 °C	-40 °C	6-SMD, No Lead Exposed Pad	5 mm	3.2 mm	0.197 in	0.126 "	MEMS	20 ppm	XO (Standard)	Enable/Disable
SiTime SIT9346AE-1C2A25E156.000000	58 mA	2.5 V	0.035 "	0.9 mm	89 mA	156 MHz	LVPECL	Surface Mount	105 ░C	-40 °C	6-SMD, No Lead Exposed Pad	5 mm	3.2 mm	0.197 in	0.126 "	MEMS	25 ppm	XO (Standard)	Enable/Disable
SiTime SIT9346AI-2B2A33E50.000000	58 mA	3.3 V	0.035 "	0.9 mm	79 mA	50 MHz	LVDS	Surface Mount	85 °C	-40 °C	6-SMD, No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	25 ppm	XO (Standard)	Enable/Disable
SiTime SIT9346AC-1BFA33N25.000000		3.3 V	0.035 "	0.9 mm	89 mA	25 MHz	LVPECL	Surface Mount	70 °C	-20 C	6-SMD, No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	10 ppm	XO (Standard)		6-PQFD (3.2x2.5)
SiTime SIT9346AI-2E1A25E125.000000	58 mA	2.5 V	0.035 "	0.9 mm	79 mA	125 MHz	LVDS	Surface Mount	85 °C	-40 °C	6-SMD, No Lead Exposed Pad	7 mm	5 mm	0.276 "	0.197 "	MEMS	20 ppm	XO (Standard)	Enable/Disable
SiTime SIT9346AE-2C3A33E200.000000	58 mA	3.3 V	0.035 "	0.9 mm	79 mA	200 MHz	LVDS	Surface Mount	105 ░C	-40 °C	6-SMD, No Lead Exposed Pad	5 mm	3.2 mm	0.197 in	0.126 "	MEMS	50 ppm	XO (Standard)	Enable/Disable
SiTime SIT9346AI-2BFA33E40.000000	58 mA	3.3 V	0.035 "	0.9 mm	79 mA	40 MHz	LVDS	Surface Mount	85 °C	-40 °C	6-SMD, No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	10 ppm	XO (Standard)	Enable/Disable	6-PQFD (3.2x2.5)
SiTime SIT9346AI-2B2A33E200.000000	58 mA	3.3 V	0.035 "	0.9 mm	79 mA	200 MHz	LVDS	Surface Mount	85 °C	-40 °C	6-SMD, No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	25 ppm	XO (Standard)	Enable/Disable
