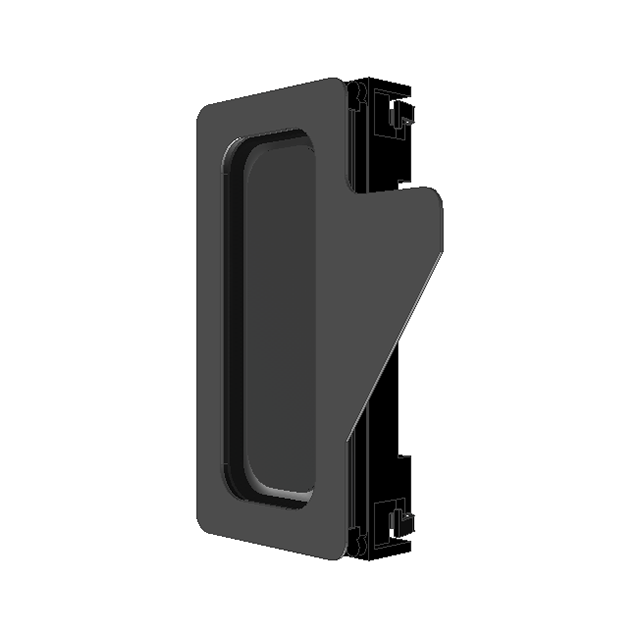

AR01232MS-SC12-WP-2-R
ActivePUI AUDIO
32Ω ELECTROMAGNETIC TYPE 450HZ 20MW SPEAKERS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
AR01232MS-SC12-WP-2-R
ActivePUI AUDIO
32Ω ELECTROMAGNETIC TYPE 450HZ 20MW SPEAKERS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AR01232MS-SC12-WP-2-R | AR01232MS Series |
|---|---|---|
| - | - | |
| Distortion Rating [Max] | 5 % | 5 % |
| Efficiency - dBA | 117 dBA | 116 - 117 dBA |
| Efficiency - Testing | 10 mm | 10 mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sensitivity, Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 450 Hz | 450 Hz |
| Frequency Range [Max] | 7 kHz | 7 kHz |
| Frequency Range [Min] | 300 Hz | 300 Hz |
| Height - Seated (Max) [Max] [z] | 0.089 in | 0.079 - 0.089 in |
| Height - Seated (Max) [Max] [z] | 2.25 mm | 2 - 2.25 mm |
| Impedance | 32 Ohms | 32 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyetheretherketone (PEEK) | Polyimide (PI), Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Port Location | Top | Top |
| Power - Max [Max] | 30 mW | 30 mW |
| Power - Rated | 20 mW | 20 mW |
| Shape | Rectangular | Rectangular |
| Size / Dimension [x] | 0.472 in | 0.472 in |
| Size / Dimension [x] | 12 mm | 12 mm |
| Size / Dimension [y] | 0.236 in | 0.236 in |
| Size / Dimension [y] | 6 mm | 6 mm |
| Technology | Magnetic | Magnetic |
| Termination | Spring Type | Spring Type |
| Type | Receiver | Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AR01232MS Series
32Ω ELECTROMAGNETIC TYPE 450HZ 20MW SPEAKERS ROHS
| Part | Port Location | Shape | Impedance | Frequency - Self Resonant | Material - Cone | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Ingress Protection | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Frequency Range [Max] | Frequency Range [Min] | Material - Magnet | Termination | Efficiency - dBA | Technology | Efficiency - Type | Power - Max [Max] | Power - Rated | Efficiency - Testing | Operating Temperature [Min] | Operating Temperature [Max] | Distortion Rating [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUI AUDIO AR01232MS-SC12-WP-R | ||||||||||||||||||||||||||
PUI AUDIO AR01232MS-SC12-WP-R | Top | Rectangular | 32 Ohms | 450 Hz | Polyimide (PI) | 0.472 in | 0.236 in | 6 mm | 12 mm | IP67 - Dust Tight, Waterproof | 2 mm | 0.079 in | Receiver | 7 kHz | 300 Hz | Nd-Fe-B | Spring Type | 116 dBA | Magnetic | Sensitivity | 30 mW | 20 mW | ||||
PUI AUDIO AR01232MS-SC12-WP-2-R | Top | Rectangular | 32 Ohms | 450 Hz | Polyetheretherketone (PEEK) | 0.472 in | 0.236 in | 6 mm | 12 mm | IP67 - Dust Tight, Waterproof | 2.25 mm | 0.089 in | Receiver | 7 kHz | 300 Hz | Nd-Fe-B | Spring Type | 117 dBA | Magnetic | Sound Pressure Level (SPL) | 30 mW | 20 mW | 10 mm | -40 °C | 80 C | 5 % |
PUI AUDIO AR01232MS-SC12-WP-2-R |
Description
General part information
AR01232MS Series
32 Ohms Receiver Speaker 20 mW 300 Hz ~ 7 kHz Top Rectangular
Documents
Technical documentation and resources
No documents available
