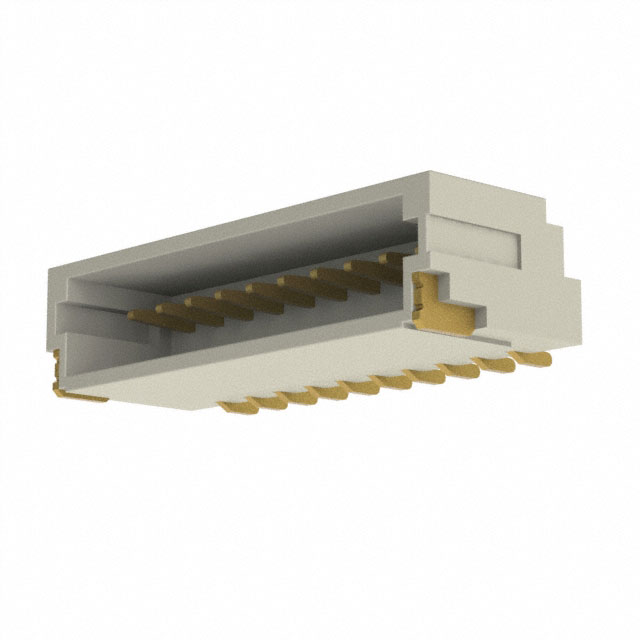

T1M-10-GF-S-RA-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT1M Series Other Related Documents 03 Datasheet +2

T1M-10-GF-S-RA-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 1MM

Deep-Dive with AI

DocumentsT1M Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-10-GF-S-RA-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-10 Series

Part	Current Rating (Amps)	Contact Material	Features	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Number of Rows	Connector Type	Style	Number of Positions	Contact Finish - Post	Contact Shape	Mounting Type	Insulation Color	Voltage Rating	Contact Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Fastening Type	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. T1M-10-T-S-V-K-TR	3.3 A	Phosphor Bronze	Pick and Place	All	0.167 in	4.25 mm	Solder	1	Header	Board to Cable/Wire	10	Tin	Square	Surface Mount	Black	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm
Samtec Inc. T1M-10-F-SH-L	3.3 A	Phosphor Bronze		All	0.181 in	4.6 mm	Solder	1	Header	Board to Cable/Wire	10	Tin	Square	Surface Mount Right Angle	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm
Samtec Inc. T1M-10-GF-S-V-TR	3.3 A	Phosphor Bronze		All	0.167 in	4.25 mm	Solder	1	Header	Board to Cable/Wire	10	Gold	Square	Surface Mount	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm	3 µin	0.076 µm
Samtec Inc. T1M-10-T-SH-L	3.3 A	Phosphor Bronze		All	0.181 in	4.6 mm	Solder	1	Header	Board to Cable/Wire	10	Tin	Square	Surface Mount Right Angle	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm
Samtec Inc. T1M-10-GF-DH-K	3.3 A	Phosphor Bronze	Pick and Place	All	0.246 in	6.25 mm	Solder	2	Header	Board to Cable/Wire	20	Gold	Square	Surface Mount Right Angle	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm	3 µin	0.076 µm
Samtec Inc. T1M-10-GF-DV-K	3.3 A	Phosphor Bronze	Pick and Place	All	0.268 in	6.8 mm	Solder	2	Header	Board to Cable/Wire	20	Gold	Square	Surface Mount	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm	3 µin	0.076 µm
Samtec Inc. T1M-10-T-DV	3.3 A	Phosphor Bronze		All	0.268 in	6.8 mm	Solder	2	Header	Board to Cable/Wire	20	Tin	Square	Surface Mount	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm
Samtec Inc. T1M-10-GF-DV	3.3 A	Phosphor Bronze		All	0.268 in	6.8 mm	Solder	2	Header	Board to Cable/Wire	20	Gold	Square	Surface Mount	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm	3 µin	0.076 µm
Samtec Inc. T1M-10-T-S-V-TR	3.3 A	Phosphor Bronze		All	0.167 in	4.25 mm	Solder	1	Header	Board to Cable/Wire	10	Tin	Square	Surface Mount	Black	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm
Samtec Inc. T1M-10-GF-S-RA-TR	3.3 A	Phosphor Bronze		All	0.126 in	3.2 mm	Solder	1	Header	Board to Cable/Wire	10	Gold	Square	Surface Mount Right Angle	Natural	250 VAC 353 VDC	Male Pin	UL94 V-0	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	Locking Ramp	Shrouded - 4 Wall	0.039 in	1 mm	Gold	3 µin	0.076 µm	3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.96
		10	$ 3.03
		25	$ 2.73
		50	$ 2.53
		100	$ 2.34
		250	$ 2.12
		500	$ 1.98
	Digi-Reel®	1	$ 3.21
		10	$ 2.91
		25	$ 2.76
		50	$ 2.69
		100	$ 2.57
		250	$ 2.24
		500	$ 2.18
	Tape & Reel (TR)	1325	$ 1.79
		2650	$ 1.68
		3975	$ 1.61

T1M-10-GF-S-RA-TR

Deep-Dive with AI

T1M-10-GF-S-RA-TR

Deep-Dive with AI

Technical Specifications

T1M-10 Series

Pricing

Description

T1M-10 Series

Documents

T1M Series Other Related Documents 03

Datasheet

T1M Datasheet

Discrete Wire Terminal Strip, 1.00 mm Pitch

T1M-10 Series
