8103 060500

Active

Belden Inc.

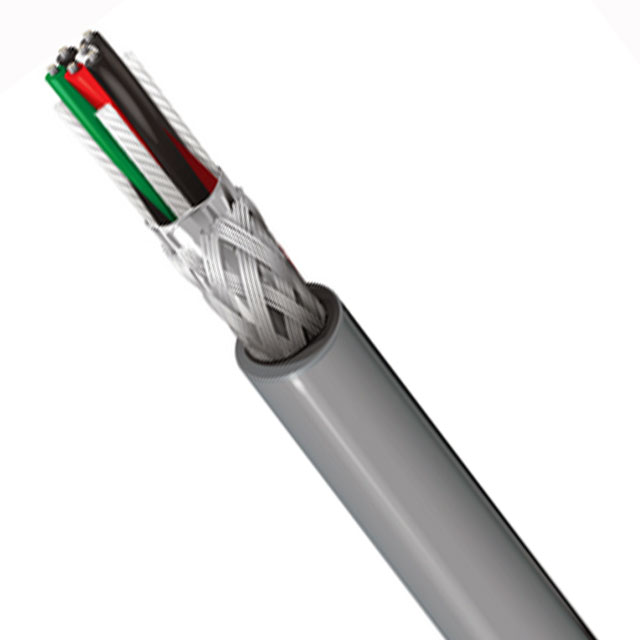

MULTI-PAIR 6CON 24AWG CHROM 500'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6CON 24AWG CHROM 500'

Technical Specifications

Parameters and characteristics for this part

Specification	8103 060500

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.283 in
Jacket (Insulation) Diameter [diameter]	7.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket Color	Shield Coverage	Features	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Material	Jacket (Insulation) Material	Shield Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Usage
Belden Inc. 8103 060500	Braid Foil	-30 ░C	80 C	6	Chrome	65 % 100 %	Drain Wire	500 '	152.4 m	32 AWG	7	Multi-Pair	Copper Tinned	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	24 AWG	0.889 mm	0.035 in	0.283 in	7.19 mm	Foam Polyethylene (FPE)	Computer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
