73051
ObsoletePomona Electronics
CONN N PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
73051
ObsoletePomona Electronics
CONN N PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73051 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 213 |
| Cable Group | RG-8 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.99 | |
Description
General part information
73051

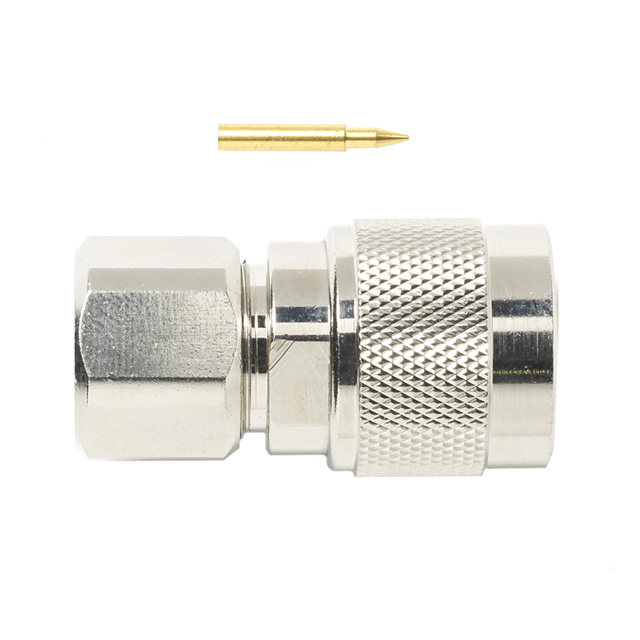

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
