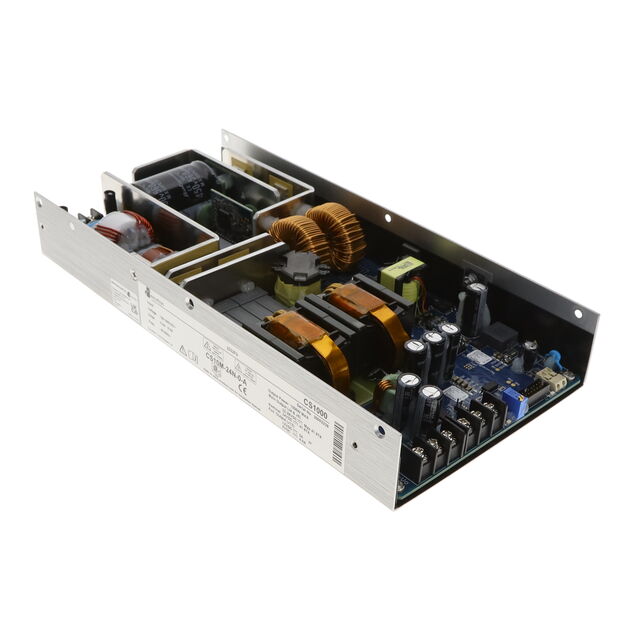

CS10M-24N-0-A

Active

EXCELSYS / Advanced Energy

AC/DC CONVERTER 24V 1000W

Search across all available documentation for this part.

Active

EXCELSYS / Advanced Energy

AC/DC CONVERTER 24V 1000W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CS10M-24N-0-A	CS10M Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	IEC, UL, EN, CSA	IEC, UL, EN, CSA
Current - Output 1	41.6 A	20.8 - 41.6 A
Efficiency	94 %	94 - 95 %
Features	PFC, PMBus™, Adjustable Output, Remote Sense, Universal Input	PFC, PMBus™, Adjustable Output, Remote Sense, Universal Input
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	1 kW	1 kW
Size / Dimension [x]	261.6 mm	261.6 mm
Size / Dimension [x]	10.3 "	10.3 "
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [y]	5 "	5 "
Size / Dimension [z]	39.1 mm	39.1 mm
Size / Dimension [z]	1.54 "	1.54 "
Standard Number	60601-1, 62368-1	60601-1, 62368-1
Type	Enclosed	Enclosed
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	24 V	24 - 48 V

AC/DC CONVERTER 48V 1000W

Part	Standard Number	Voltage - Output 1	Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Applications	Features	Efficiency	Minimum Load Required	Power (Watts)	Number of Outputs	Current - Output 1	Mounting Type
EXCELSYS / Advanced Energy CS10M-48N-0-A	60601-1, 62368-1	48 V	Enclosed	4000 V	85 °C	-40 °C	127 mm	39.1 mm	1.54 "	5 "	261.6 mm	10.3 "	CSA, EN, IEC, UL	ITE (Commercial), Medical	Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input	95 %		1 kW	1	20.8 A	Chassis Mount
EXCELSYS / Advanced Energy CS10M-24N-0-A	60601-1, 62368-1	24 V	Enclosed	4000 V	85 °C	-40 °C	127 mm	39.1 mm	1.54 "	5 "	261.6 mm	10.3 "	CSA, EN, IEC, UL	ITE (Commercial), Medical	Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input	94 %		1 kW	1	41.6 A	Chassis Mount
