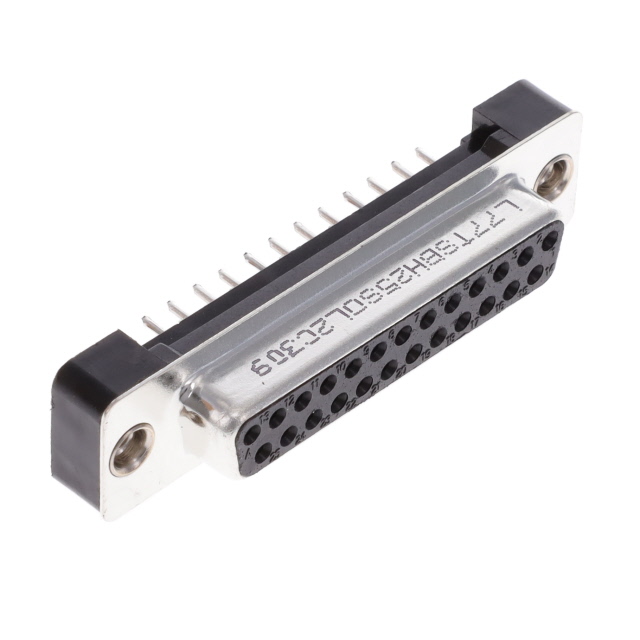

L77TSBH25SOL2C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L77TSBH25SOL2C309

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	600 V

Part	Flange Feature	Contact Type	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Form	Number of Rows	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Contact Material	Dielectric Material	Contact Finish	Voltage Rating	Material Flammability Rating	Connector Style	Mounting Type
Amphenol ICC (Commercial Products) L77TSBH25SOL2RM5C309	4-40 Board Side	Signal	Flash	-55 °C	125 °C	Receptacle Female Sockets	Stamped	2	Solder	B DB	3	5 A	Copper Alloy	Thermoplastic Glass Filled	Gold	600 V	UL94 V-0	D-Sub	Through Hole
Amphenol ICC (Commercial Products) L77TSBH25SOL2	4-40 Board Side	Signal	Flash	-55 °C	125 °C	Receptacle Female Sockets	Stamped	2	Solder	B DB	3	5 A	Copper Alloy	Thermoplastic Glass Filled	Gold	600 V	UL94 V-0	D-Sub	Through Hole
Amphenol ICC (Commercial Products) L77TSBH25SOL2C309	4-40 Board Side	Signal	Flash	-55 °C	125 °C	Receptacle Female Sockets	Stamped	2	Solder	B DB	3	5 A	Copper Alloy	Thermoplastic Glass Filled	Gold	600 V	UL94 V-0	D-Sub	Through Hole
Amphenol ICC (Commercial Products) L77TSBH25SOL2RM5	4-40 Board Side	Signal	Flash	-55 °C	125 °C	Receptacle Female Sockets	Stamped	2	Solder	B DB	3	5 A	Copper Alloy	Thermoplastic Glass Filled	Gold	600 V	UL94 V-0	D-Sub	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
