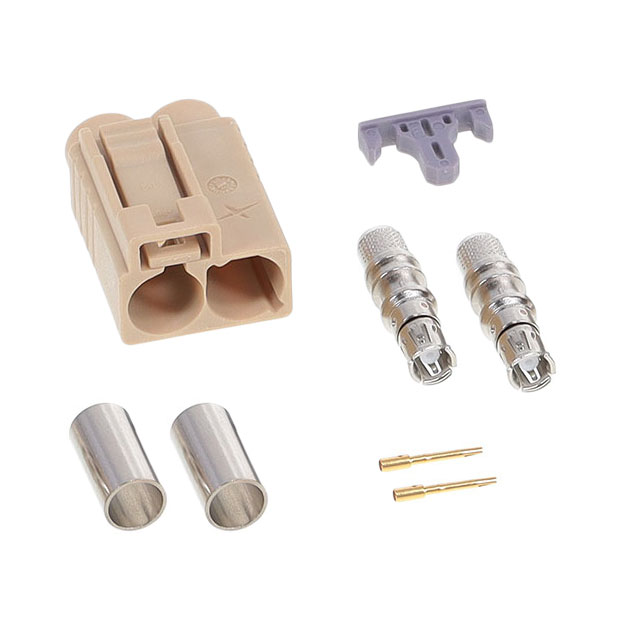

FKDFIG

Active

TAOGLAS

DUAL FAKRA CODE I SMB(F)ST_ FOR

Search across all available documentation for this part.

Active

TAOGLAS

DUAL FAKRA CODE I SMB(F)ST_ FOR

Technical Specifications

Parameters and characteristics commom to parts in this series

DUAL FAKRA CODE I SMB(F)ST_ FOR

Part	Mounting Type	Fastening Type	Shield Termination	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Cable Group	Connector Type	Connector Style	Features	Contact Termination	Number of Ports	Frequency - Max [Max]	Mating Cycles
TAOGLAS FKDFIG	Free Hanging (In-Line)	Latch Lock	Crimp	50 Ohms	-40 °C	105 ░C	Beige	316, RG-174	Female Socket, Jack	Fakra, SMB	Code I	Crimp	2	6000 MHz	25
TAOGLAS FKDFIDK	Free Hanging (In-Line)	Latch Lock	Crimp	50 Ohms	-40 °C	105 ░C	Beige	316, RG-174	Female Socket, Jack	Fakra, SMB	Code I	Crimp	2	6000 MHz	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
