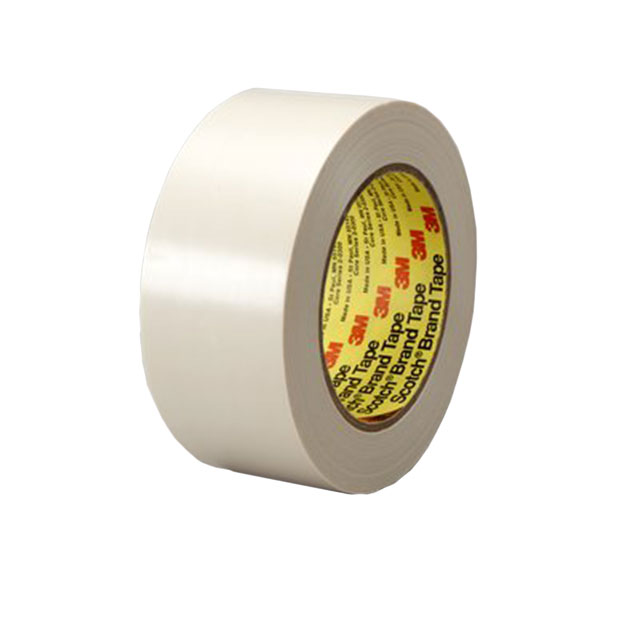

470-1"X36YD

Active

3M (TC)

TAPE ELECTROPLATING TAN 1"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTROPLATING TAN 1"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	470-1"X36YD

Adhesive	Rubber
Backing, Carrier	Vinyl
Color	Tan
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Electroplating
Temperature Range	170 °F
Temperature Range	77 °C
Thickness	0.18 mm
Thickness	7.1 mils
Thickness	0.0071 in
Thickness - Adhesive [custom]	0.021 mm
Thickness - Adhesive [custom]	0.0008 "
Thickness - Adhesive [custom]	0.8 mils
Thickness - Backing, Carrier [custom]	6.3 mils
Thickness - Backing, Carrier [custom]	0.16 mm
Thickness - Backing, Carrier [custom]	0.0063 in
Usage	Sealing, Protection, Masking
Width [x]	25.4 mm
Width [x]	1 in

Part	Backing, Carrier	Color	Tape Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Usage	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length	Length	Length	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Shelf Life	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Width [y]	Width [y]	Adhesive	Width	Width	Width	Width [x]	Width [x]
3M (TC) 470-2"X36YD	Vinyl	Tan	Electroplating	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Masking Protection Sealing	6.3 mils	0.16 mm	0.0063 in	36 yd	32.9 m	108 ft	170 °F	77 °C	0.18 mm	7.1 mils	0.0071 in	18 Months	0.021 mm	0.0008 "	0.8 mils	2 "	50.8 mm	Rubber
3M (TC) 470-1.5"X36YD	Vinyl	Tan	Electroplating	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Masking Protection Sealing	6.3 mils	0.16 mm	0.0063 in	36 yd	32.9 m	108 ft	170 °F	77 °C	0.18 mm	7.1 mils	0.0071 in	18 Months	0.021 mm	0.0008 "	0.8 mils			Rubber	1.5 "	38.1 mm	1 1/2
3M (TC) 470-1"X36YD	Vinyl	Tan	Electroplating	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Masking Protection Sealing	6.3 mils	0.16 mm	0.0063 in	36 yd	32.9 m	108 ft	170 °F	77 °C	0.18 mm	7.1 mils	0.0071 in	18 Months	0.021 mm	0.0008 "	0.8 mils			Rubber				25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electroplating Tape Rubber Adhesive Tan 1.00" (25.40mm) X 108' (32.9m) 36 yds
