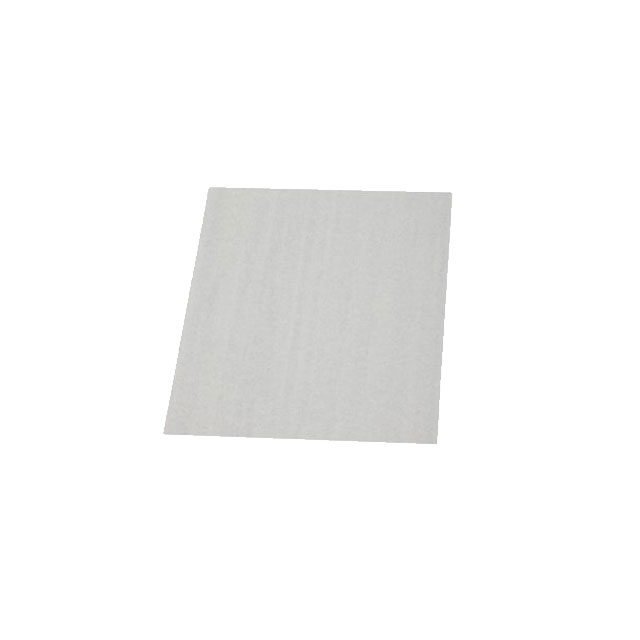

5578H-05-240-12(8)

Active

3M (TC)

THERM PAD 304.8X239.78MM

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 304.8X239.78MM

Technical Specifications

Parameters and characteristics for this part

Specification	5578H-05-240-12(8)

Adhesive	Tacky - Both Sides
Color	Gray, White
Material	Acrylic Elastomer
Outline [x]	304.8 mm
Outline [y]	239.78 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	68 °F
Thermal Conductivity	3.5 W/m-K
Thickness	0.0197 in
Thickness	0.5 mm
Type	Interface Pad, Sheet

Part	Shape	Adhesive	Type	Thermal Conductivity	Outline [x]	Outline [y]	Color	Shelf Life	Shelf Life Start	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness	Thickness
3M (TC) 3M 5578H-05 9.44" X 5.46YDS	Rectangular	Tacky - Both Sides	Interface Pad Roll	3.5 W/m-K	4.99 m	239.78 mm	Gray White	12 Months	Date of Manufacture	Acrylic Elastomer	77 °F	68 °F	0.0197 in	0.5 mm
3M (TC) 5578H-05-120-5	Rectangular	Tacky - Both Sides	Interface Pad Roll	3.5 W/m-K	4.99 m	119.89 mm	Gray White	12 Months	Date of Manufacture	Acrylic Elastomer	77 °F	68 °F	0.0197 in	0.5 mm
3M (TC) 5578H-05-240-12(8)	Rectangular	Tacky - Both Sides	Interface Pad Sheet	3.5 W/m-K	304.8 mm	239.78 mm	Gray White	12 Months	Date of Manufacture	Acrylic Elastomer	77 °F	68 °F	0.0197 in	0.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray, White 304.80mm x 239.78mm Rectangular Tacky - Both Sides
