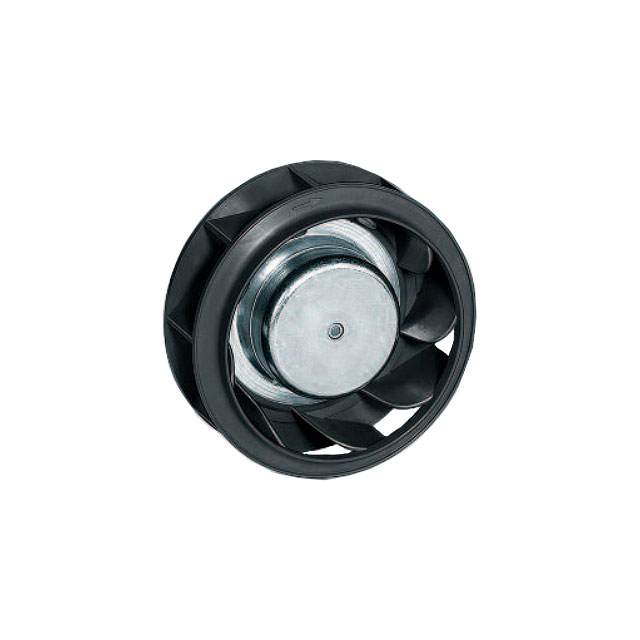

R1G120-AD13-02

Obsolete

ebm-papst Inc.

FAN IMP MTRZD 120X54MM 24VDC

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN IMP MTRZD 120X54MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	R1G120-AD13-02

Approval Agency	EAC
Bearing Type	Ball
Current Rating (Amps)	1.2 A
Fan Type	Motorized Impellers
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Material - Blade	Nylon 6/6, Polyamide (PA66), Fiberglass Reinforced
Noise	62 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	26 W
RPM	4060 RPM
Size / Dimension [diameter]	120 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Width [y]	54 mm

Part	Fan Type	Approval Agency	Features	Voltage - Rated	Power (Watts)	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Termination	Noise	Bearing Type	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade
ebm-papst Inc. R1G120-AD13-02	Motorized Impellers	EAC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	24 VDC	26 W	120 mm	50 °C	-25 °C	-25 °C	50 °C	4060 RPM	4 Wire Leads with Splice Terminals	62 dB(A)	Ball	54 mm	16 VDC	28 VDC	1.2 A	Fiberglass Reinforced Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 24VDC Round - 120mm Dia Ball 4 Wire Leads with Splice Terminals
