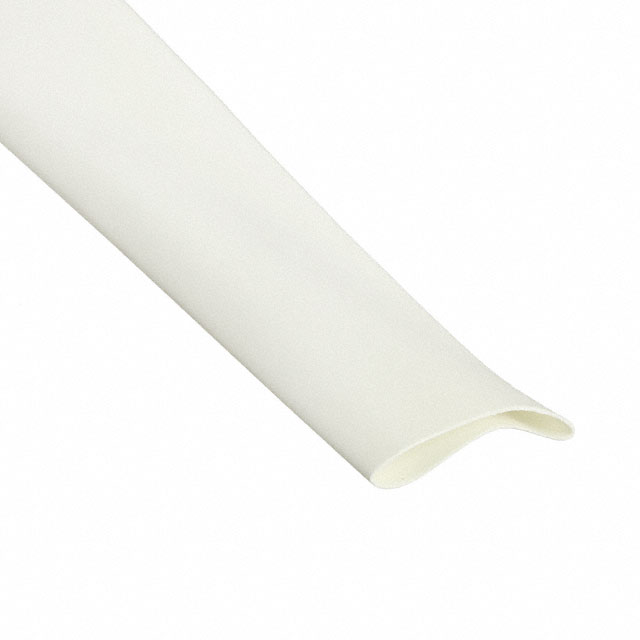

VERSAFIT-3/16-9-SP

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=100FT

Deep-Dive with AI

DocumentsVERSAFIT Datasheet VERSAFIT® Tubing Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VERSAFIT-3/16-9-SP

Color	White
Features	Flame Retardant
Inner Diameter - Recovered	2.36 mm
Inner Diameter - Recovered	0.093 in
Inner Diameter - Supplied [diameter]	5.21 mm
Inner Diameter - Supplied [diameter]	0.205 in
Length	1.52 m, 7.6 m
Length	5 ', 25 ft
Length [x]	30.5 m
Length [x]	100 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

RAYCHEM Versafit Series

...

Part	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Length	Length	Length	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio	Type	Features	Color	Spool Size	Spool Size	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Operating Temperature [Max]	Operating Temperature [Min]	Shelf Life Start	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection VERSAFIT-3/8-0-SP-SM	0.025 "	0.64 mm	196.8 ft	60 m	Enter Number of Meters in Order Quantity	70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black	120 m	393.7 '	0.4 in	10.16 mm	Polyolefin (PO)	4.75 mm	0.187 in	144 Months	135 °C	-55 °C
TE Connectivity Raychem Cable Protection VERSAFIT-1/16-0-SP			32.8 '	10 m 984.3 ft		70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black			0.073 in	1.85 mm	Polyolefin (PO)	0.79 mm	0.031 in	144 Months	135 °C	-55 °C	Date of Manufacture	9.84 ft 16.4 ft	3 m 5 m	0.43 mm	0.017 in	300 m
TE Connectivity Raychem Cable Protection VERSAFIT-1/4-0-1.5IN	0.025 "	0.64 mm	0.125 '	38.1 mm		70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black			0.28 in	7.11 mm	Polyolefin (PO)		0.125 in	144 Months	135 °C	-55 °C						1.5 "	3.18 mm
TE Connectivity Raychem Cable Protection VERSAFIT-4-0-SP						70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black			4.098 in	104.09 mm	Polyolefin (PO)	50.8 mm	2 in	144 Months	135 °C	-55 °C		100 ft	30.5 m	1.4 mm	0.055 in
TE Connectivity Raychem Cable Protection VERSAFIT-3/16-9-SP			5 ' 25 ft	1.52 m 7.6 m		70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	White			0.205 in	5.21 mm	Polyolefin (PO)			144 Months	135 °C	-55 °C		100 ft	30.5 m	0.51 mm	0.02 in		2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection VERSAFIT-1/4-0-SP-SM	0.025 "	0.64 mm			Enter Number of Meters in Order Quantity	70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black	150 m	492.1 '	0.28 in	7.11 mm	Polyolefin (PO)		0.125 in	144 Months	135 °C	-55 °C							3.18 mm
TE Connectivity Raychem Cable Protection VERSAFIT-1/16-0-SP-SM						70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black			0.073 in	1.85 mm	Polyolefin (PO)	0.79 mm	0.031 in	144 Months	135 °C	-55 °C				0.43 mm	0.017 in
TE Connectivity Raychem Cable Protection VERSAFIT-3/64-6-SP						70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Blue			0.063 in	1.6 mm	Polyolefin (PO)	0.023 in		144 Months	135 °C	-55 °C				0.38 mm	0.015 in				0.58 mm
TE Connectivity Raychem Cable Protection VERSAFIT-2-0-SP			82 ft	25 m		70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	Black			2.08 in	52.83 mm	Polyolefin (PO)	25.4 mm	1 in	144 Months	135 °C	-55 °C		9.84 ft 16.4 ft	3 m 5 m	1.14 mm	0.045 in
TE Connectivity Raychem Cable Protection VERSAFIT-5/8-9-SP						70 °C	18 °C 65 °F	35 °C	2 to 1	Tubing Flexible	Flame Retardant	White			0.665 in	16.89 mm	Polyolefin (PO)	8 mm	0.315 in	144 Months	135 °C	-55 °C				0.76 mm						0.03 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RAYCHEM Versafit Series

Heat Shrink Tubing, Flexible 0.205" (5.21mm) 2 to 1 White 100.0' (30.5m)

Documents

Technical documentation and resources

VERSAFIT Datasheet

Datasheet

VERSAFIT® Tubing Spec Sheet

Datasheet
