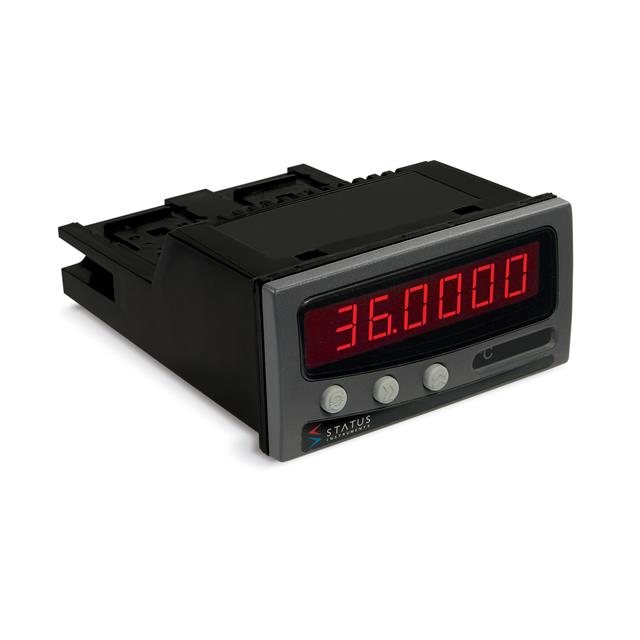

DM3600U/00/S1

Active

Status Instruments Ltd

DIGITAL PANEL METER

Search across all available documentation for this part.

Active

Status Instruments Ltd

DIGITAL PANEL METER

Technical Specifications

Parameters and characteristics for this part

Specification	DM3600U/00/S1

Display Characters - Height [z]	0.591 in
Display Characters - Height [z]	15 mm
Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	20 mA, 10 V, 1820 °C
Measuring Range [Min]	-210 °C, -20 mA, -10 V
Measuring Type	RTD, Thermocouple, Process
Number of Characters Per Row	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Output Type	Relay (2)
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Temperature Meter, Process
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	9 VAC/DC

DIGITAL PANEL METER

Part	Termination Style	Type	Number of Characters Per Row	Ingress Protection	Measuring Range [Min]	Measuring Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Type	Display Characters - Height [z]	Display Characters - Height [z]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type
Status Instruments Ltd DM3600U/00/S1	Screw Terminal	Process, Temperature Meter	6	IP65 - Dust Tight, Water Resistant	-210 °C, -20 mA, -10 V	10 V, 20 mA, 1820 °C	-30 ░C	60 °C	Process, RTD, Thermocouple	0.591 in	15 mm	Relay (2)	9 VAC/DC	264 VAC	92 mm	45 mm	LED - Red Characters

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 292.50

General part information

Process, Temperature Meter LED - Red Characters Display Panel Mount
