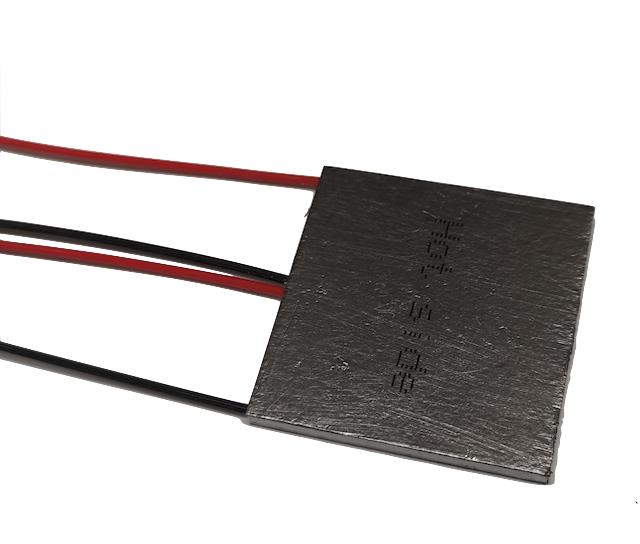

MONTEG 4X4

Active

Thermoelectric Conversion Systems Ltd

TEG GENERATOR 40X40 20W

Search across all available documentation for this part.

Active

Thermoelectric Conversion Systems Ltd

TEG GENERATOR 40X40 20W

Technical Specifications

Parameters and characteristics for this part

Specification	MONTEG 4X4

Current - Max [Max]	5 A
Delta Tmax @ Th	380 °C
Features	Pellet Measurement, Sealed, Lead Wires, Lapped
Height [z]	3.6 mm
Number of Stages	1
Operating Temperature	400 °C
Qmax @ Th	20 W
Size / Dimension [x]	40 mm
Size / Dimension [y]	40 mm
Voltage - Max [Max]	16 V

TEG GENERATOR 40X40 20W

Part	Operating Temperature	Current - Max [Max]	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Number of Stages	Delta Tmax @ Th	Voltage - Max [Max]	Features
Thermoelectric Conversion Systems Ltd MONTEG 4X4	400 °C	5 A	20 W	40 mm	40 mm	3.6 mm	1	380 °C	16 V	Lapped, Lead Wires, Pellet Measurement, Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 20.0W @ 330°C 5 A 400°C

Technical documentation and resources

No documents available
