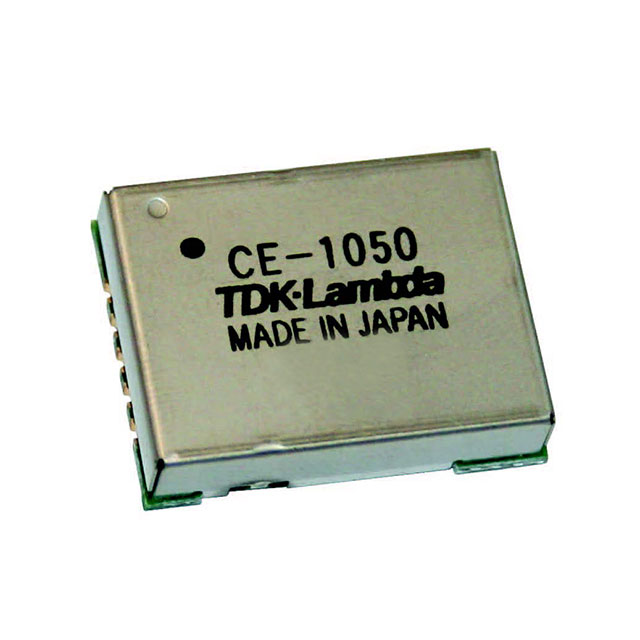

CE-1050-TP

TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 31.5 W, 3.3 VDC, 12.6 VDC, 2.5 A

Search across all available documentation for this part.

TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 31.5 W, 3.3 VDC, 12.6 VDC, 2.5 A

Technical Specifications

Parameters and characteristics for this part

NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 31.5 W, 3.3 VDC, 12.6 VDC, 2.5 A

Part	Supplier Device Package	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Number of Outputs	Applications	Package / Case	Efficiency	Features	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
TDK-LAMBDA CE-1050-TP	10-SMD Module	21.3 mm	0.22 in	5.5 mm	0.84 in	16.4 mm	0.65 in	2.5 A	Surface Mount	3.3 V	12.6 V	1	ITE (Commercial)	10-SMD Module	90 %	OCP, Remote On/Off	Non-Isolated PoL Module	26.4 V	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 11.99
Newark	Each	50	$ 10.47

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3.3 ~ 12.6V 2.5A 9V - 26.4V Input
