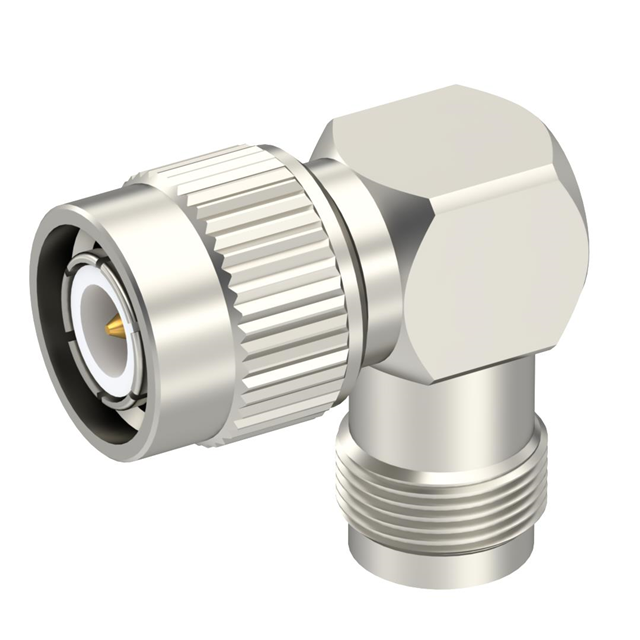

R143770000

Active

Radiall USA, Inc.

TNC / RIGHT ANGLE MALE-FEMALE AD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / RIGHT ANGLE MALE-FEMALE AD

Technical Specifications

Parameters and characteristics for this part

Specification	R143770000

Adapter Series	TNC to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Conversion Type	Convert To (Adapter End)	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Style	Frequency - Max [Max]	Mating Cycles	Body Material	Dielectric Material	Center Contact Plating	Body Finish	Adapter Type	Mounting Type	Impedance	Center Contact Material
Radiall USA, Inc. R143770000	Same Series	Male Pin TNC Plug	TNC Jack Female Socket	-65 ░C	165 °C	TNC to TNC	Right Angle	4.5 GHz	500	Brass	Polytetrafluoroethylene (PTFE)	Gold	Nickel	Plug to Jack	Free Hanging (In-Line) Right Angle	50 Ohms	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
