568-001-744-200

Active

EDAC Inc.

ASSEMBLY RECEPT 1POS WATERPROOF

Search across all available documentation for this part.

Active

EDAC Inc.

ASSEMBLY RECEPT 1POS WATERPROOF

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Fastening Type	Features	Connector Type	Mounting Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Note	Length	Length	Length	Shielding	Contact Finish	Cable Termination
EDAC Inc. 568-001-000-100	Crimp	Latch Lock	Waterproof	Plug	Free Hanging (In-Line)	1	1	-40 °C	105 ░C	Male Pin	Polybutylene Terephthalate (PBT)	Contacts Not Included
EDAC Inc. 568-001-000-200	Crimp	Latch Holder	Waterproof	Receptacle	Free Hanging (In-Line)	1	1	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT)	Contacts Not Included
EDAC Inc. 568-001-744-200			Waterproof	Socket to Cable		1	1						7.87 in	0.656 ft	200 mm	Unshielded	Tin	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.89

General part information

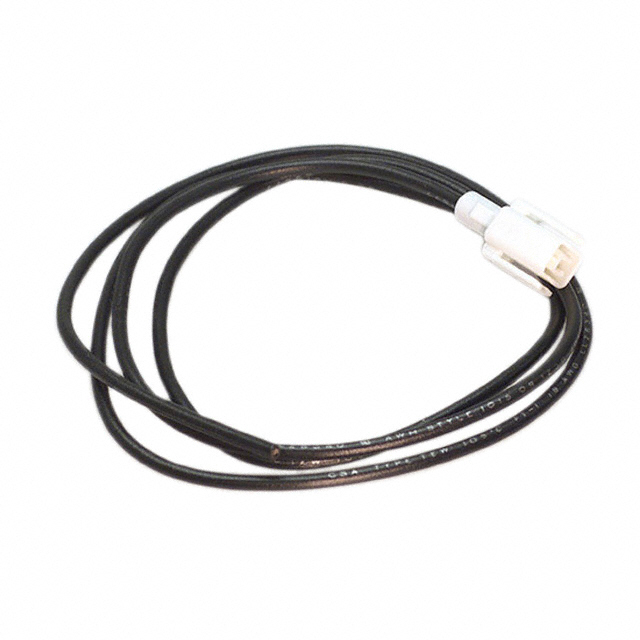

1 Position Cable Assembly Rectangular Socket to Cable 0.656' (200.00mm, 7.87")
