SEAF-10-06.5-S-04-1-A-K-TR

Active

Samtec Inc.

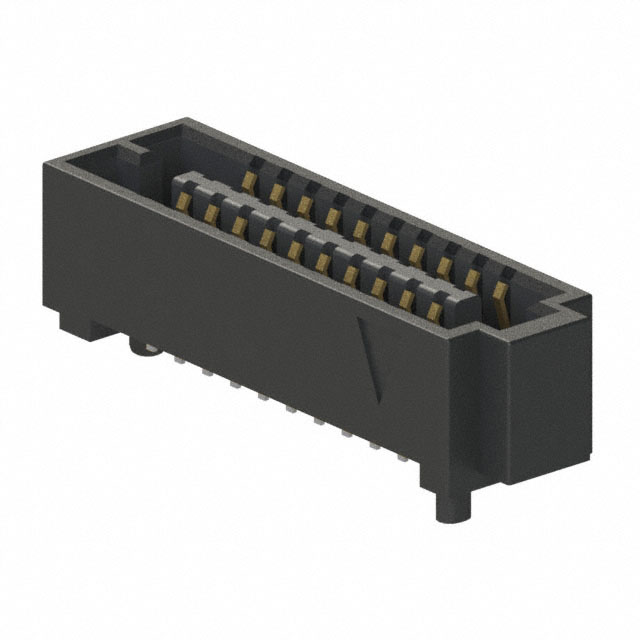

CONN HD ARRAY RCPT 40P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAF-10-06.5-S-04-1-A-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 40P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-10-06.5-S-04-1-A-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	0.258 "
Height Above Board	6.55 mm
Mated Stacking Heights	19.5 mm, 9.5 mm, 8.5 mm, 15.5 mm, 17.5 mm, 10 mm, 13 mm, 13.5 mm
Mounting Type	Surface Mount
Number of Positions	40
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-10 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Features
Samtec Inc. SEAF-10-06.0-S-04-1-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.238 in	6.05 mm	8 mm 9 mm 9.5 mm 12.5 mm 13 mm 15 mm 17 mm 19 mm	0.76 Ám	30 Áin	High Density Array Female	40	Board Guide Pick and Place
Samtec Inc. SEAF-10-06.5-L-04-1-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.258 "	6.55 mm	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm	0.25 Ám	10 Áin	High Density Array Female	40	Board Guide Pick and Place
Samtec Inc. SEAF-10-05.0-L-04-2-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.199 in	5.05 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.25 Ám	10 Áin	High Density Array Female	40	Board Guide Pick and Place
Samtec Inc. SEAF-10-05.0-S-04-2-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.199 in	5.05 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.76 Ám	30 Áin	High Density Array Female	40	Board Guide Pick and Place
Samtec Inc. SEAF-10-06.5-L-04-2-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.258 "	6.55 mm	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm	0.25 Ám	10 Áin	High Density Array Female	40	Board Guide Pick and Place
Samtec Inc. SEAF-10-06.5-S-04-2-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.258 "	6.55 mm	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm	0.76 m	30 in	High Density Array Female	40	Board Guide Pick and Place
Samtec Inc. SEAF-10-06.5-S-04-1-A-K-TR	Gold	0.05 in	1.27 mm	Surface Mount	0.258 "	6.55 mm	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm	0.76 Ám	30 Áin	High Density Array Female	40	Board Guide Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 6.37

Description

General part information

SEAF-10 Series

40 Position Connector High Density Array, Female Surface Mount Gold
