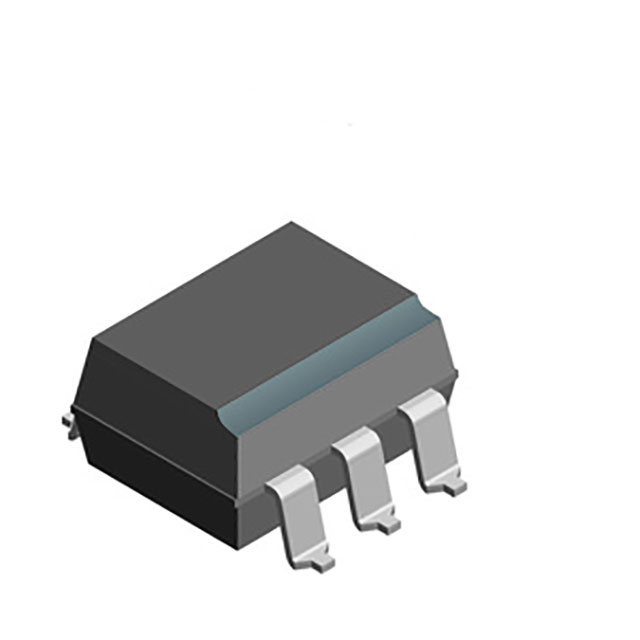

CNY17F-4X007T

Active

Vishay General Semiconductor - Diodes Division

OPTOISOLTR 5KV TRANSISTOR 6-SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOption Information Datasheet

CNY17F-4X007T

Active

Vishay General Semiconductor - Diodes Division

OPTOISOLTR 5KV TRANSISTOR 6-SMD

Deep-Dive with AI

DocumentsOption Information Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CNY17F-4X007T

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	320 %
Current Transfer Ratio (Min) [Min]	160 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	6-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	2 µs
Rise / Fall Time (Typ) [custom]	2 µs
Supplier Device Package	6-SMD
Turn On / Turn Off Time (Typ)	2.3 µs, 3 µs
Vce Saturation (Max) [Max]	400 mV
Voltage - Forward (Vf) (Typ)	1.39 V
Voltage - Output (Max) [Max]	70 V

CNY17 Series

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Turn On / Turn Off Time (Typ)	Output Type	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Vce Saturation (Max) [Max]	Current - Output / Channel	Package / Case	Package / Case	Package / Case	Number of Channels	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]	Voltage - Output (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Mounting Type
Vishay General Semiconductor - Diodes Division CNY17F-1X006	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	80 %	40 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17-2	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs		DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17F-2X001	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17-3X009T	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs		DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	200 %	100 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-2X006	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17-4X017	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs		DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	320 %	160 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-4X007T	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	320 %	160 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-1X019	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	80 %	40 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-2	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17F-3X017	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	200 %	100 %	70 V	60 mA	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.51
		100	$ 0.33
	Digi-Reel®	1	$ 0.78
		10	$ 0.51
		100	$ 0.33
	Tape & Reel (TR)	1000	$ 0.26
		2000	$ 0.25
		5000	$ 0.24
		10000	$ 0.23
		25000	$ 0.23

Description

General part information

CNY17 Series

Optoisolator Transistor Output 5000Vrms 1 Channel 6-SMD
