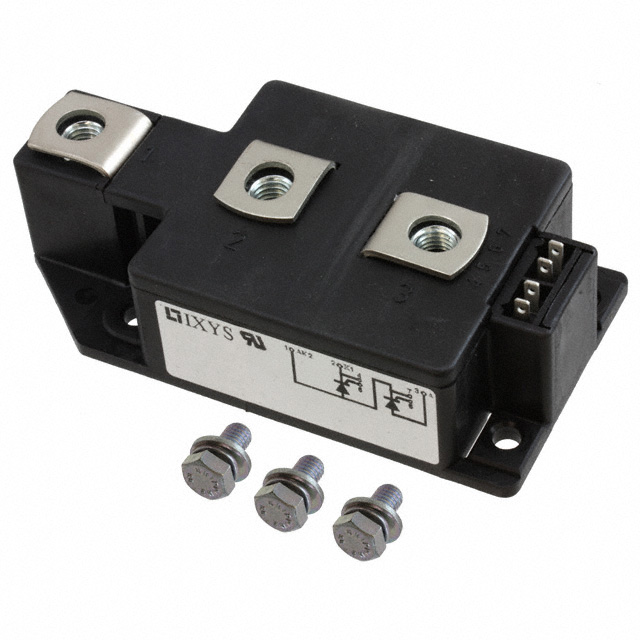

MCC250-18IO1

Obsolete

IXYS

THYRISTOR DUAL 1800V 450A

Search across all available documentation for this part.

Obsolete

IXYS

THYRISTOR DUAL 1800V 450A

Technical Specifications

Parameters and characteristics for this part

Specification	MCC250-18IO1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9600 A, 9000 A
Current - On State (It (AV)) (Max) [Max]	287 A
Current - On State (It (RMS)) (Max) [Max]	450 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	Y2-DCB
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

Part	Mounting Type	Current - On State (It (RMS)) (Max) [Max]	Structure	Voltage - Gate Trigger (Vgt) (Max) [Max]	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Operating Temperature [Min]	Operating Temperature [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)
IXYS MCC250-16IO1	Chassis Mount	450 A	Series Connection - All SCRs	2 V	2 SCRs	150 mA	1.6 kV	-40 °C	140 °C	150 mA	287 A	Y2-DCB	9000 A 9600 A
IXYS MCC250-08IO1	Chassis Mount	450 A	Series Connection - All SCRs	2 V	2 SCRs	150 mA	800 V	-40 °C	140 °C	150 mA	287 A	Y2-DCB	9000 A 9600 A
IXYS MCC250-12IO1	Chassis Mount	450 A	Series Connection - All SCRs	2 V	2 SCRs	150 mA	1.2 kV	-40 °C	140 °C	150 mA	287 A	Y2-DCB	9000 A 9600 A
IXYS MCC250-18IO1	Chassis Mount	450 A	Series Connection - All SCRs	2 V	2 SCRs	150 mA	1.8 kV	-40 °C	140 °C	150 mA	287 A	Y2-DCB	9000 A 9600 A
