HURCBH-3-01

Active

Essentra Access Solutions

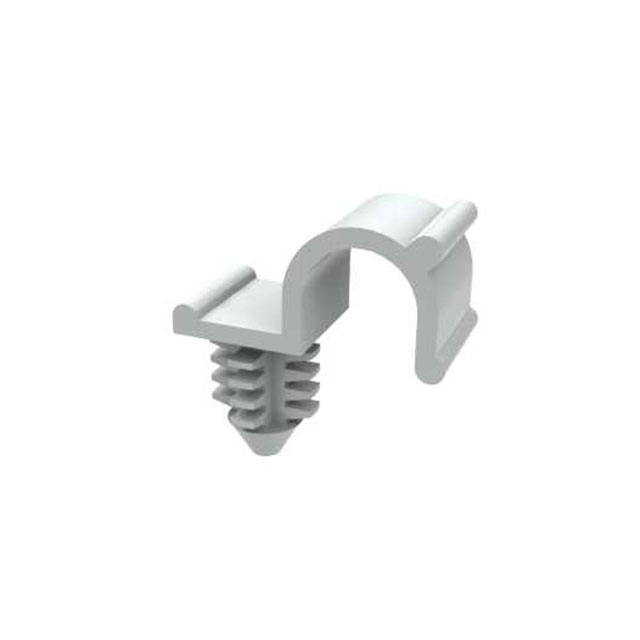

CBL CLIP U-TYPE NATURAL FIR TREE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP U-TYPE NATURAL FIR TREE

Technical Specifications

Parameters and characteristics for this part

Specification	HURCBH-3-01

Bundle Center to Mounting Center [x]	0.24 in
Bundle Center to Mounting Center [x]	6.1 mm
Color	Natural
Height [z]	6.1 mm
Height [z]	0.24 in
Length [x]	0.56 in
Length [x]	14.22 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fir Tree, Blind Hole
Opening Size [custom]	0.187 in
Opening Size [custom]	4.75 mm
Panel Hole Size	6.35 mm
Panel Hole Size	0.25 in
Panel Thickness	0.25 "
Panel Thickness	6.35 mm
Type Attributes	Half
Width	7.62 mm
Width [x]	0.3 "

Part	Color	Opening Size [custom]	Opening Size [custom]	Panel Hole Size	Panel Hole Size	Panel Thickness	Panel Thickness	Length [x]	Length [x]	Height [z]	Height [z]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Type Attributes	Material Flammability Rating	Mounting Type	Width [x]	Width	Material
Essentra Access Solutions HURCBH-3-01	Natural	0.187 in	4.75 mm	6.35 mm	0.25 in	0.25 "	6.35 mm	0.56 in	14.22 mm	6.1 mm	0.24 in	0.24 in	6.1 mm	Half	UL94 V-2	Blind Hole Fir Tree	0.3 "	7.62 mm	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, U-Type Natural Fir Tree, Blind Hole 0.187" (4.75mm)
