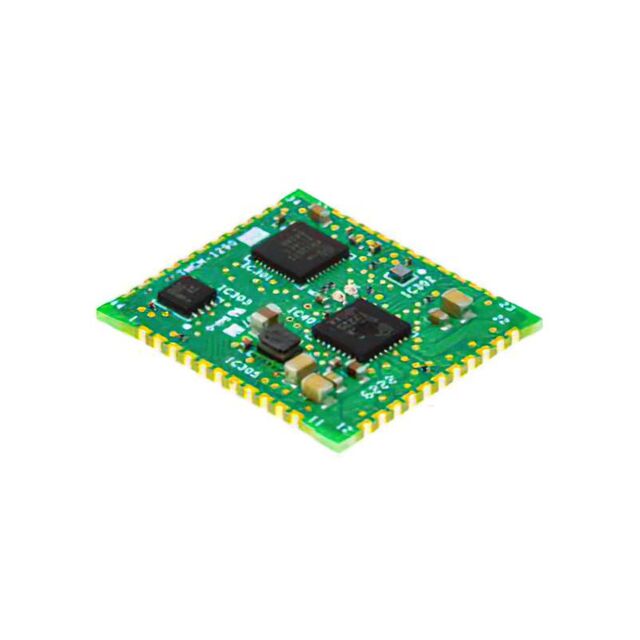

TMCM-1290-EVAL
ActiveEVALUATION BOARD FOR TMCM-1290-T
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1290-EVAL
ActiveEVALUATION BOARD FOR TMCM-1290-T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1290-EVAL |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Primary Attributes [Max] | 31 V |
| Primary Attributes [Min] | 12 V |
| Secondary Attributes | On-Board LEDs |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | TMCM-1290 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 133.24 | |
Description
General part information
TMCM-1290 Series
The TMCM-1290 is a single axis controller and driver module for 2-phase stepper motors. It comes either with TMCL or with Modbus firmware installed and communicates through RS485 or SPI. Both allow use of the TMC5240 motion controller and motor driver. StealthChop, SpreadCycle, Stall-Guard2, and CoolStep allow for dynamic current control and quiet, smooth, and efficient motor operation.ApplicationsBroad MarketSystem IntegratorsLab AutomationTextilePackagingLife SciencesSemiconductor HandlingPumps and Motor DrivesMulti-Axis Applications
