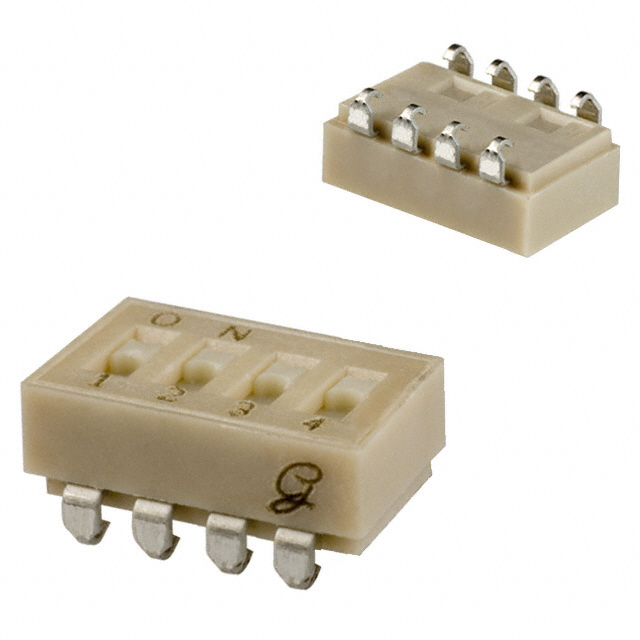

90HBJ04PT

Active

Grayhill Inc.

SWITCH DIP ON OFF SPST 4 RECESSED SLIDE 0.1A 30VDC J-LEAD 2000CYCLES 2.54MM SMD TUBE

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH DIP ON OFF SPST 4 RECESSED SLIDE 0.1A 30VDC J-LEAD 2000CYCLES 2.54MM SMD TUBE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

Part	Washable	Number of Positions	Electrical Life	Current Rating (Amps)	Length	Length	Termination Style	Mechanical Life	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Contact Material	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Body Material	Contact Finish	Voltage Rating	Features	Actuator Type
Grayhill Inc. 90HBJ04PT		4	2000 Steps	25 mA	11.94 mm	0.47 in	J Lead	2000 Cycles	Flush, Recessed	0.1 in	Full	2.54 mm	Copper Alloy	SPST	85 °C	-40 °C	Surface Mount	Thermoplastic	Gold	24 VDC	Tape Seal	Slide (Standard)
Grayhill Inc. 90HBJ04PRT		4	2000 Steps	25 mA	11.94 mm	0.47 in	J Lead	2000 Cycles	Flush, Recessed	0.1 in	Full	2.54 mm	Copper Alloy	SPST	85 °C	-40 °C	Surface Mount	Thermoplastic	Gold	24 VDC	Tape Seal	Slide (Standard)
