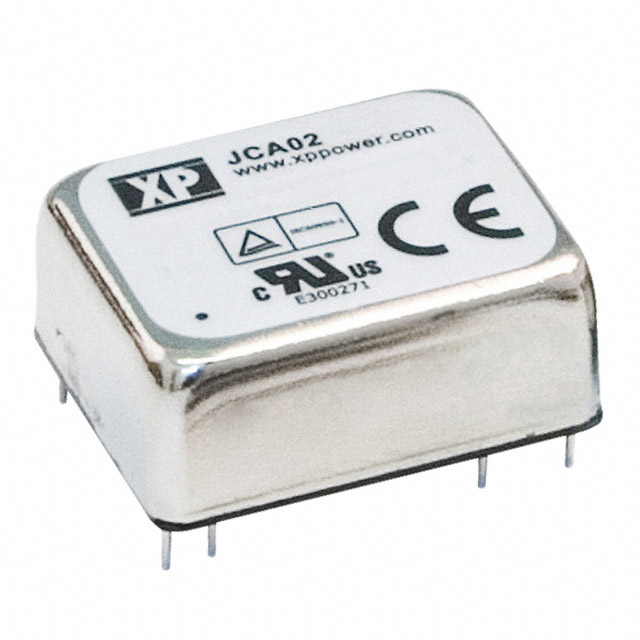

JCA0205S05

Active

XP POWER

DC DC CONVERTER 5V 2W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 5V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Voltage - Input (Max) [Max]	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Mounting Type	Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Standard Number	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1	Current - Output (Max)	Voltage - Output 2
XP POWER JCA0205S12	24-DIP Module 7 Leads	9 V	Isolated Module	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	ITE (Commercial)	Through Hole	OCP OVP SCP UVLO	74 %	100 °C	-40 °C	1	62368-1	1.5 kV	4.5 V	170 mA	2 W	12 V
XP POWER JCA0205S03	24-DIP Module 7 Leads	9 V	Isolated Module	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	ITE (Commercial)	Through Hole	OCP OVP SCP UVLO	69 %	100 °C	-40 °C	1	62368-1	1.5 kV	4.5 V	600 mA	2 W	3.3 V
XP POWER JCA0205D03	24-DIP Module 8 Leads	9 V	Isolated Module	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	ITE (Commercial)	Through Hole	OCP OVP SCP UVLO	70 %	100 °C	-40 °C	2	62368-1	1.5 kV	4.5 V		2 W	15 V	70 mA	-15 V
XP POWER JCA0205S05	24-DIP Module 7 Leads	9 V	Isolated Module	0.39 in	10 mm	0.8 in	25.4 mm	20.3 mm	1 in	ITE (Commercial)	Through Hole	OCP OVP SCP UVLO	73 %	100 °C	-40 °C	1	62368-1	1.5 kV	4.5 V	400 mA	2 W	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
