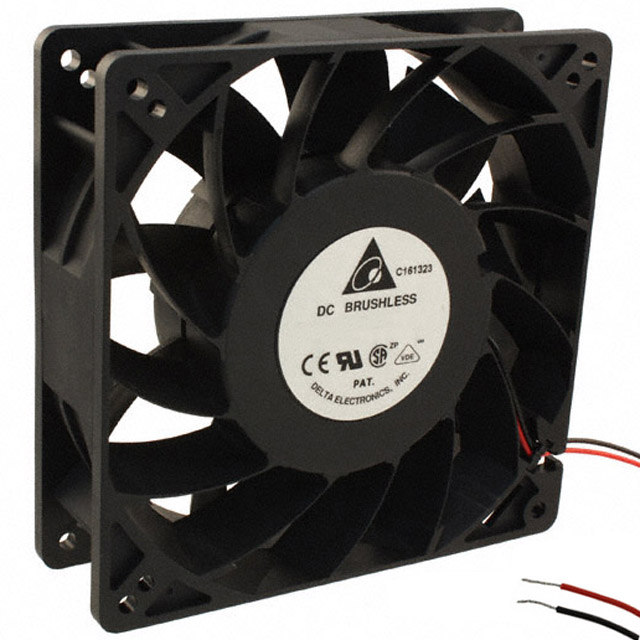

FFB1324EHE

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Voltage - Rated	Power (Watts)	Static Pressure	Static Pressure	Width [y]	Approval Agency	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Air Flow	Air Flow	Noise	Current Rating (Amps)	Bearing Type	Termination	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	RPM
Delta Electronics FFB1324VHE	Plastic	24 VDC	14.4 W	125.5 Pa	0.504 in H2O	38 mm	CE CSA UL VDE	70000 Hrs	26.4 VDC	14 VDC	127 mm	127 mm	Tubeaxial	160 CFM	4.48 m³/min	53 dB	600 mA	Ball	2 Wire Leads	499 g	1.1 lbs	70 °C	70 °C	-10 °C	-10 °C	Plastic
Delta Electronics FFB1324SHE
Delta Electronics FFB1324EHE	Plastic	24 VDC	28.8 W			38 mm	CE CSA UL VDE	70000 Hrs	26.4 VDC	14 VDC	127 mm	127 mm	Tubeaxial	200 CFM	5.6 mł/min	59.5 dB	1.2 A	Ball	2 Wire Leads	499 g	1.1 lbs	70 °C	70 °C	-10 °C	-10 °C	Plastic	3850 RPM
Delta Electronics FFB1324VHE-B	Plastic	24 VDC	14.4 W	125.5 Pa	0.504 in H2O	38 mm	CE CSA UL VDE	70000 Hrs	26.4 VDC	14 VDC	127 mm	127 mm	Tubeaxial	160 CFM	4.48 m³/min	53 dB	600 mA	Ball	2 Wire Leads	499 g	1.1 lbs	70 °C	70 °C	-10 °C	-10 °C	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 127mm L x 127mm H Ball 200.0 CFM (5.60m³/min) 2 Wire Leads
