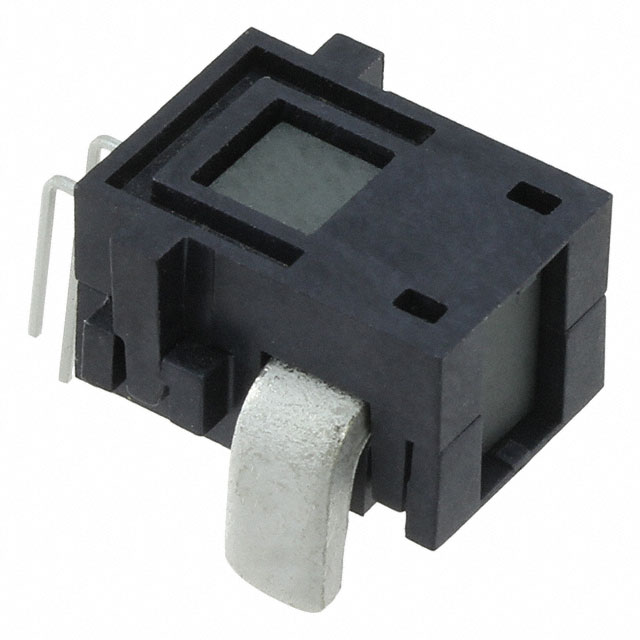

CQ206A

Obsolete

Asahi Kasei Microdevices/AKM

SENSOR CURRENT HALL 50A AC/DC

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices/AKM

SENSOR CURRENT HALL 50A AC/DC

Technical Specifications

Parameters and characteristics for this part

SENSOR CURRENT HALL 50A AC/DC

Part	Sensitivity	Output	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Sensing	Polarization	Frequency	Linearity	Current - Supply (Max) [Max]	Response Time	Number of Channels	For Measuring	Accuracy	Sensor Type
Asahi Kasei Microdevices/AKM CQ206A	45 mV/A	Ratiometric, Voltage	Module	Through Hole	4.5 V	5.5 V	90 °C	-40 °C	46 A	Bidirectional	400 kHz	1 %	9 mA	1 µs	1	AC/DC	1 %	Hall Effect, Open Loop

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Current Sensor 46A 1 Channel Hall Effect, Open Loop Bidirectional Module
