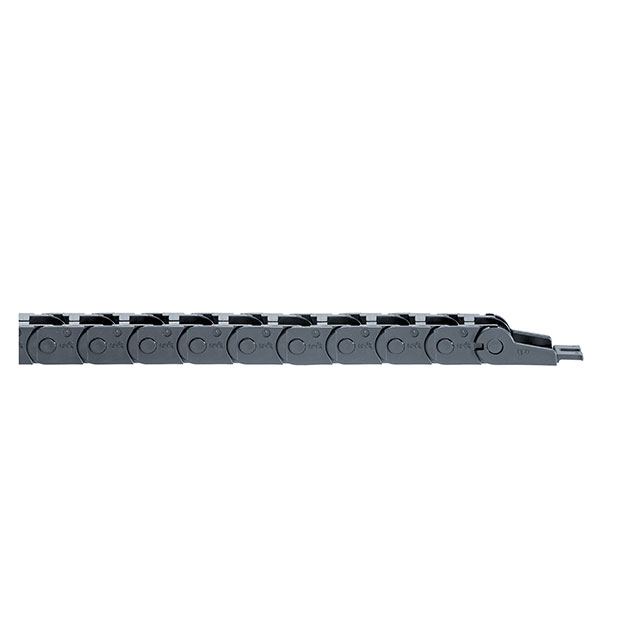

E14-2-038-0

Active

Igus

CABLE CARRIER .98H X 1.46W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .98H X 1.46W 1=1FT

Technical Specifications

Parameters and characteristics for this part

CABLE CARRIER .98H X 1.46W 1=1FT

Part	Frame Type	Outer Width	Outer Width [x]	Cavity Width [y]	Cavity Width [y]	Minimum Bend Radius [radius]	Minimum Bend Radius [radius]	Link Pitch	Link Pitch	Loading Side	Cavity Height [z]	Cavity Height [z]	Outer Height	Outer Height	Operating Temperature [Min]	Operating Temperature [Max]	Material
Igus E14-2-038-0	Open	37.08 mm	1.46 in	24.89 mm	0.98 in	38.1 mm	1.5 in	1.2 in	30.48 mm	Inside and Outside Bend	0.75 in	19.05 mm	0.98 in	24.89 mm	-40 °C	80 C	Igumid G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .98H X 1.46W 1=1FT
