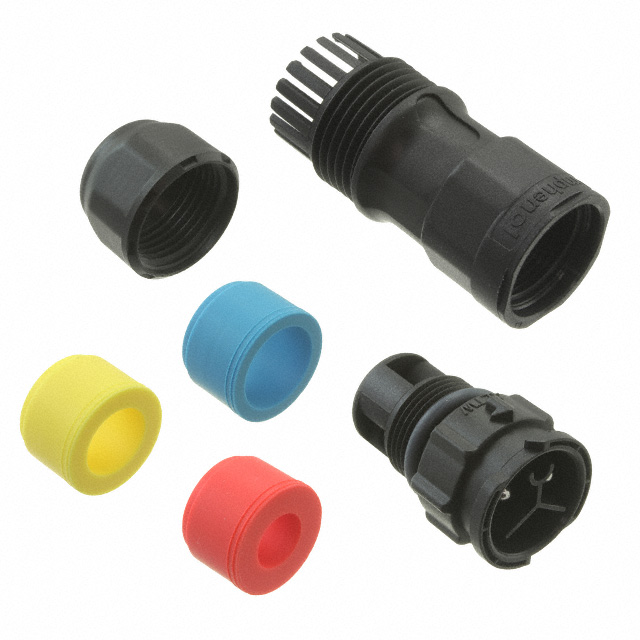

CC-02BMMB-QL8APP

Active

Amphenol LTW

CONN RCPT MALE 2POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 2POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	CC-02BMMB-QL8APP

Cable Opening [custom]	0.472 in, 0.236 in
Cable Opening [custom]	12 mm
Cable Opening [custom]	6 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Termination	Screw
Voltage Rating	300 VAC

Part	Contact Material	Orientation	Voltage Rating	Connector Type	Shell Size - Insert	Color	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shielding	Termination	Mounting Type	Features	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Ingress Protection	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Insert Material	Fastening Type
Amphenol LTW CC-02BMMB-QL8APP	Copper Alloy	Keyed	300 VAC	Male Pins Receptacle	C	Black	0.236 in 0.472 in	12 mm	6 mm	Unshielded	Screw	Free Hanging (In-Line)	Backshell	Plastic	-40 °C	105 ░C	Gold	IP68 - Dust Tight Waterproof	2	20 A	UL94 V-0	Polyamide (PA) Nylon Glass Filled	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Receptacle, Male Pins Screw
