XC7VX485T-2FFG1158C

Active

AMD / Xilinx

IC FPGA 350 I/O 1158FCBGA

XC7VX485T-2FFG1158C

Active

AMD / Xilinx

IC FPGA 350 I/O 1158FCBGA

Description Specifications Series Pricing CAD Documents

Description

General part information

XC7VX485 Series

Virtex®-7 XT Field Programmable Gate Array (FPGA) IC 350 37969920 485760 1156-BBGA, FCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC7VX485T-2FFG1158C

Mounting Type	Surface Mount
Number of I/O	350
Number of LABs/CLBs	37950
Number of Logic Elements/Cells	485760
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	0 °C
Package / Case	1156-BBGA, FCBGA
Package Length	35 mm
Package Name	1158-FCBGA
Package Width	35 mm
Total RAM Bits	37969920 bits
Voltage - Supply (Maximum)	1.03 V
Voltage - Supply (Minimum)	0.97 V

XC7VX485 Series

Part	Total RAM Bits	Package / Case	Package Name	Package Width	Package Length	Mounting Type	Number of Logic Elements/Cells	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Number of LABs/CLBs	P/N Breakdown	Suggested Programming Environment	For Use With/Related Products	Interconnect System	Contents	Utilized IC / Part	Platform	Type
AMD / Xilinx XC7VX485T-2FFG1930I	37969920 bits	1924-BBGA FCBGA	1930-FCBGA	45 mm	45 mm	Surface Mount	485760	1.03 V	0.97 V	100 °C	-40 °C	700	37950
AMD / Xilinx XC7VX485T-3FFG1157E	37969920 bits	1156-BBGA FCBGA	1157-FCBGA	35 mm	35 mm	Surface Mount	485760	1.03 V	0.97 V	100 °C	0 °C	600	37950
AMD / Xilinx XC7VX485T-1FFG1157C	37969920 bits	1156-BBGA FCBGA	1157-FCBGA	35 mm	35 mm	Surface Mount	485760	1.03 V	0.97 V	85 °C	0 °C	600	37950
AMD / Xilinx XC7VX485T-2FFG1157I	37969920 bits	1156-BBGA FCBGA	1157-FCBGA	35 mm	35 mm	Surface Mount	485760	1.03 V	0.97 V	100 °C	-40 °C	600	37950
AMD / Xilinx XC7VX485T-2FFG1927I	37969920 bits	1924-BBGA FCBGA	1927-FCBGA	45 mm	45 mm	Surface Mount	485760	1.03 V	0.97 V	100 °C	-40 °C	600	37950
AMD / Xilinx XC7VX485T-1FF1157I	37969920 bits	1156-BBGA FCBGA	1157-FCBGA	35 mm	35 mm	Surface Mount	485760	1.03 V	0.97 V	100 °C	-40 °C	600	37950

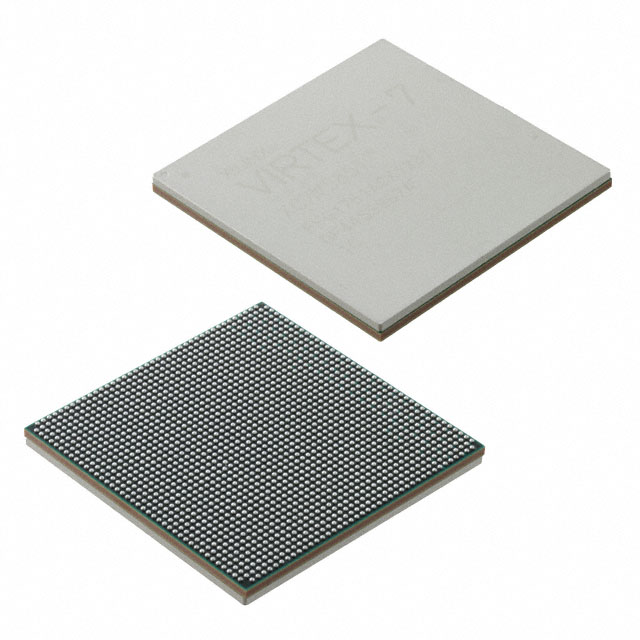

AMD / Xilinx XC7VX485T-2FF1761C	37969920 bits	1760-BBGA FCBGA	1761-FCBGA	42.5 mm	42.5 mm	Surface Mount	485760	1.03 V	0.97 V	85 °C	0 °C	700	37950
AMD / Xilinx XC7VX485T-2FFG1158C	37969920 bits	1156-BBGA FCBGA	1158-FCBGA	35 mm	35 mm	Surface Mount	485760	1.03 V	0.97 V	85 °C	0 °C	350	37950
AMD / Xilinx CK-V7-VC7203-G-J														J = Japan version does not ship with a power supply	ISE Vivado	XC7VX485T	FMC	Board Cable(s) - Power Supply Not Included -	XC7VX485T	Virtex-7 FPGA VC7203 Japan	FPGA

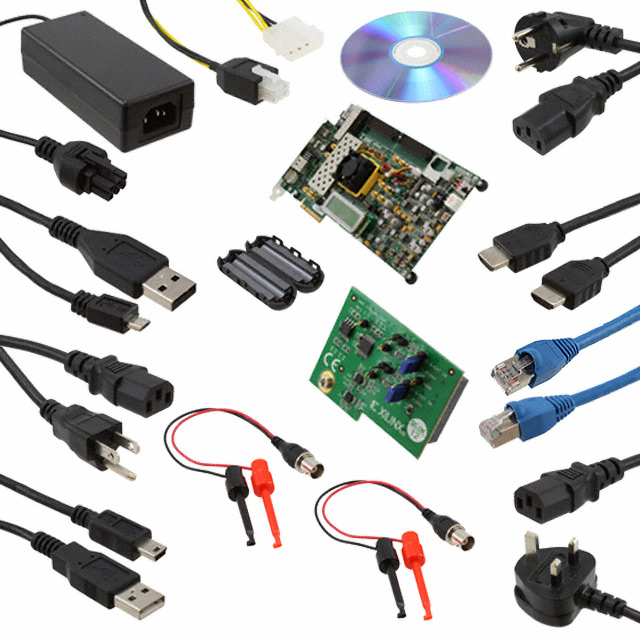

AMD / Xilinx EK-V7-VC707-G-J														J = Japan version does not ship with a power supply	ISE	XC7VX485T	FMC	Board Cable(s) - Power Supply Not Included -	XC7VX485T	Virtex-7 FPGA VC707 Japan PCIe Card	FPGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
