M3AEK-1036R

Active

IDC CABLE - MSC10K/MC10M/MCE10K

Search across all available documentation for this part.

Active

IDC CABLE - MSC10K/MC10M/MCE10K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

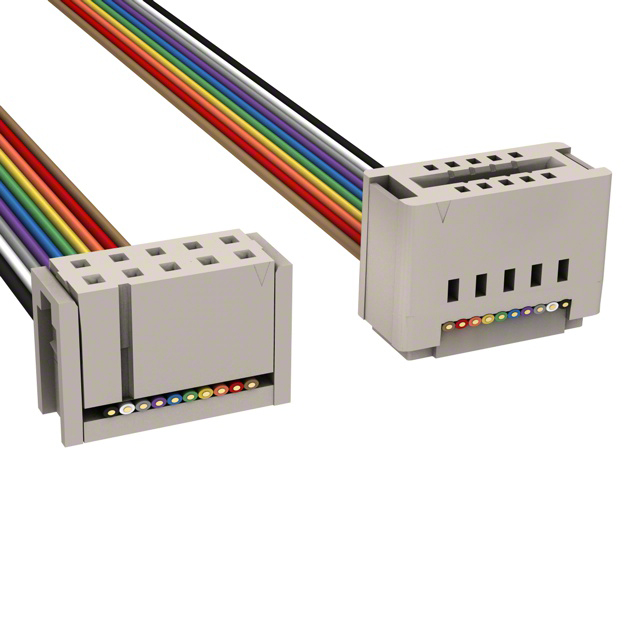

10 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)

Technical documentation and resources

Part	Length [x]	Length [x]	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Shielding	Length	Length	Length	Color
3M M3AEK-1036J	3 ft	914.4 mm	IDC	10	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	Socket to Card Edge	Unshielded
3M M3AEK-1006J			IDC	10	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	Socket to Card Edge	Unshielded	152.4 mm	6 "	0.5 '
3M M3AEK-1006R			IDC	10	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	Socket to Card Edge	Unshielded	152.4 mm	6 "	0.5 '	Multiple, Ribbon
3M M3AEK-1036R	3 ft	914.4 mm	IDC	10	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	Socket to Card Edge	Unshielded				Multiple, Ribbon
3M M3AEK-1018R	1.5 ft	457.2 mm	IDC	10	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	Socket to Card Edge	Unshielded				Multiple, Ribbon
